Air Diffuser

Home  > Products  > new category  > Air Diffuser and Air Grille  > Air Diffuser  >

hot selling ceiling air diffuser aluminum swirl diffuser round shape adjustable blades white color grilles and diffuser

hot selling ceiling air diffuser aluminum swirl diffuser round shape adjustable blades white color grilles and diffuser

hot selling ceiling air diffuser aluminum swirl diffuser round shape adjustable blades white color grilles and diffuser

Type
HVAC Systems,Ventilation
Lead_Time
1 - 10(Pieces):10(days),11 - 100(Pieces):20(days),101 - 500(Pieces):30(days),>500(Pieces):Negotiable(days)
shipping
Sea freight
Customization
Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Warranty:1 Year
After-sale Service:Online technical support
Project Solution Capability:graphic design
Application:Office Building
Design Style:Contemporary
Place of Origin:Guangdong, China
Brand Name:VENTECH
Model Number:SD-VC
Product name:Swirl Diffuser
Material:Aluminum
Material Thickness:1.0mm
Shape:Round
Size:Dia150,200,250,300...
Surface finish:Powder Coating
Standard Color:RAL9010/RAL9016/Anordized
Feature:Exhaust air/Return air
Installation:Ceilling
Function:Ventilaion
Video Description

Professional Air Ceiling Diffusers and Air Grilles Manufacturer

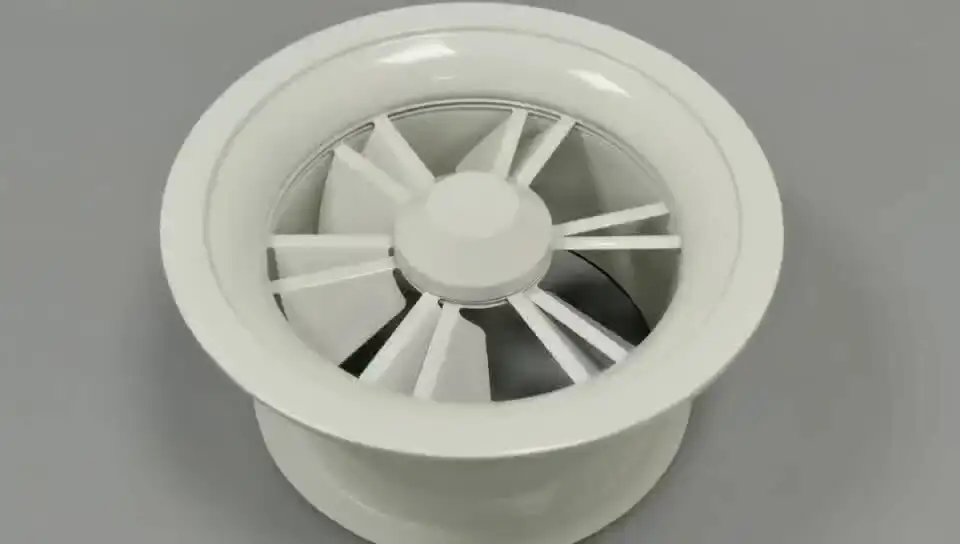

SWIRL DIFFUSER - VD type



VENTECH Ceiling swirl diffusers in air conditioning systems create a swirl to supply air to rooms. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air. Ceiling swirl diffusers allow for large volume flow rates. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.

Ceiling swirl diffusers have adjustable air control blades. Different air patterns allow for cooling or heating mode, or for the adjustment to varying loads. Horizontal air discharge is Omni directional.

Features:

  • 1. For Supply air.
    2. High induction, a rapid reduction of the temperature difference and airflow velocity.
    3. Discharge direction can be adjusted manually or with an actuator.
    4. Butterfly damper optional.
    5. Actuator optional for adjusting the air discharge direction.
    6. Ideal for high ceilings.

Details:

  • Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
  • Material thickness: 1.0mm

The blades of the twist outlet is designed in the principle of mechanics to enable the air flow to become a rotational flow with a definite initial velocity that can throw the wind farther and cover a broader area and increase the convection of air flow. The blade can change the wind-supply angle according to different modes of wind supply. The regulative twist outlet can be controlled manually, electrically and by infrared ray. It is widely used in airports, railways stations, theatres, stadiums, factories, big conference rooms and shops, etc



Drawing

SIZE:

Size

A

Q2

H2

Volume(m3/h)

200

200

300

145

450

250

250

360

166

750

315

315

465

200

2000

400

400

568

236

2500

500

500

718

260

3000

630

600

878

304

3500
