After-sale Service:Online technical support, Return and Replacement
Project Solution Capability:graphic design
Place of Origin:Guangdong, China
Product name:Linear Slot Diffuser
Surface finish:Powder Coating
Standard Color:RAL9010 / RAL9016
Professional Air Ceiling Diffusers and Air Grilles Manufacturer
LINEAR SLOT DIFFUSER
VENTECH Linear Slot Diffusers are an attractive alternative to the ceiling or high sidewall supply diffusers. Slot diffusers can be installed individually in set lengths or in a continuous line. They can also be installed in any type of ceiling application.
The modules are available with a 20mm or 25mm Slot with the number of slots ranging from 1 to 6 slots and are further available as fixed or removable core. (Fixed Core - Model LSD-VA, Removable Core – LSD-VB.)
The air pattern control is adjustable from the diffuser face and is achieved by means of an adjustable pattern control with each slot, enabling a full 90º air pattern adjustment. The suggested volume control should be from the main duct run take-off, or from a butterfly damper fitted to the inlet of the cushion head box.
·Concealed screw fixing
·Finish: off white standard, other colors on demand
·Made from high grade extruded aluminum profiles & sheets.

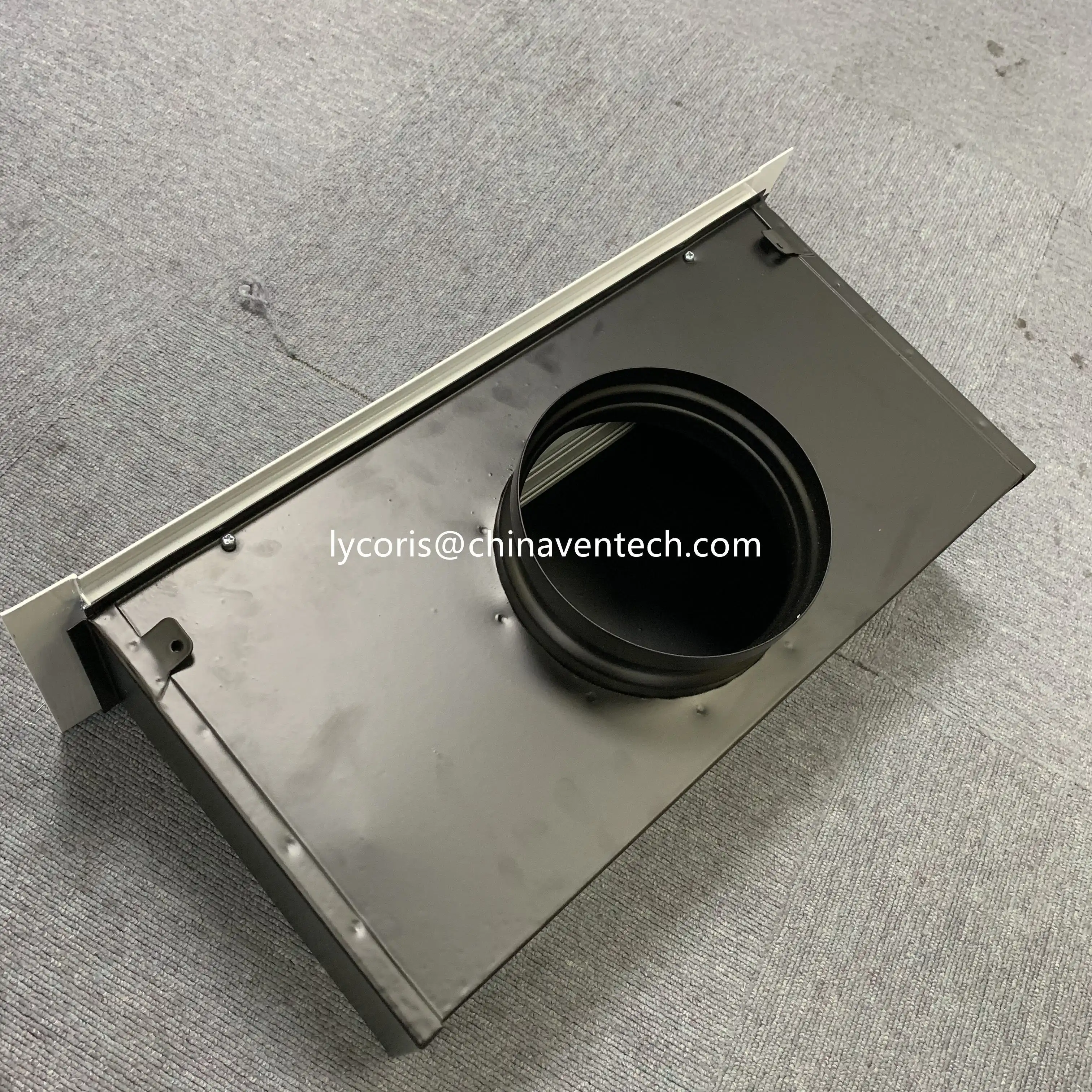

·Accessories: Hit & miss damper, plenum box-top/side entry connection
Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
Material thickness: 1.2mm
Accessory: Adaptor Optional
Drawing- with Adaptor
This product is able to suit any personal style, space or function. It will matter the most when designing a space. Its wipe-clean design makes it suitable for internal use.
This product is definitely a safe choice for anyone experiencing some type of discomforts such as allergies and various skin conditions. Its wipe-clean design makes it suitable for internal use.
