Ventilation linear slot diffuser aluminum 2 slot air grille 1

Ventilation linear slot diffuser aluminum 2 slot air grille 2

Ventilation linear slot diffuser aluminum 2 slot air grille 3

Ventilation linear slot diffuser aluminum 2 slot air grille 4

Ventilation linear slot diffuser aluminum 2 slot air grille 5

Ventilation linear slot diffuser aluminum 2 slot air grille 6

Ventilation linear slot diffuser aluminum 2 slot air grille 7

Ventilation linear slot diffuser aluminum 2 slot air grille

Type:

HVAC Systems,Ventilation

Lead_Time:

1 - 600(Pieces):15(days),>600(Pieces):Negotiable(days)

shipping:

Sea freight

Customization:

Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)

Inquiry

Write a Review

Overview

Quick Details

Warranty:5 years

After-sale Service:Online technical support, Free spare parts, Other

Project Solution Capability:graphic design, total solution for projects, Others

Application:Apartment

Design Style:EUROPEAN

Place of Origin:Guangdong, China

Brand Name:VENTECH

Model Number:LSD-VA

Material:Aluminum

Function:Return Air

Feature:Adjustable

Usage:Air Conditioning Terminal

Shape:Rectangle

Color:White

Video Description

1. Description:

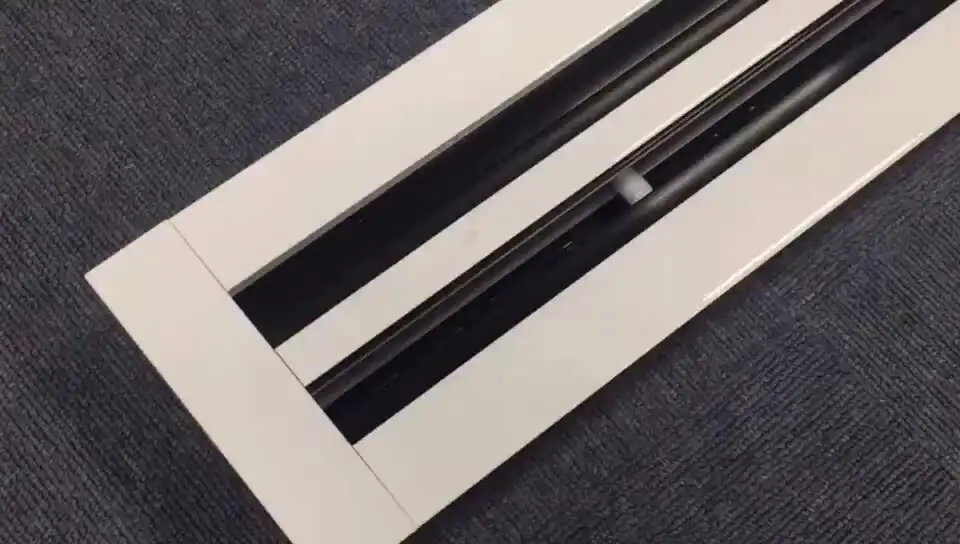

* The linear slot diffuser is a type of air ouotlet with 1 or more slots. It is typically used in meeting rooms or hotel.

* The linear slot diffuser repersents the most popular air distribution design option for almost any interior applications .It's blades are adjustable to facilitate accurate control of air flow direction.Specially designed hit and miss damper allows for easy control of air volume.

* Suitable for rooms with ceiling heights from 2.5m to 4m.Available in 1 to 5 slots configuration .

2. Colour :

* White: RAL 9010, RAL9016,RAL9003

* Anodized

* Other color available as client's need

3. Product Drawing:

4. Standard size details:

Slot Distance	Slots	A	B	H
20	1	84	40	49
20	2	120	76	49
20	3	155	111	49
20	4	191	147	49
20	5	226	182	49
20	6	262	218	49
25	1	89	45	49
25	2	130	86	49
25	3	170	126	49
25	4	211	167	49
25	5	251	207	49
25	6	292	248	49

6. Product details:

Thanks to its user-friendly design, the product will not cause electrical leakage problems when people use it in their life or work. This product meets the requirements of building regulations. The use of this product means saving working time and labor costs. Workers can also do jobs much easier with the aid of this product. This product meets the requirements of building regulations.
