    Overview
    Quick Details
    Warranty:1 Year
    After-sale Service:Free spare parts
    Project Solution Capability:total solution for projects
    Application:Hotel
    Design Style:Modern
    Place of Origin:Guangdong, China
    Brand Name:VENTECH
    Model Number:LG-VA
    Material:Aluminum
    Thickness:1.0mm
    Color:White or anodized
    Size:All size available
    Function:Ventilaion
    Shape:Rectangular
    Accessories:Damper ,Clip
    Payment terms:TT,LC
    Video Description

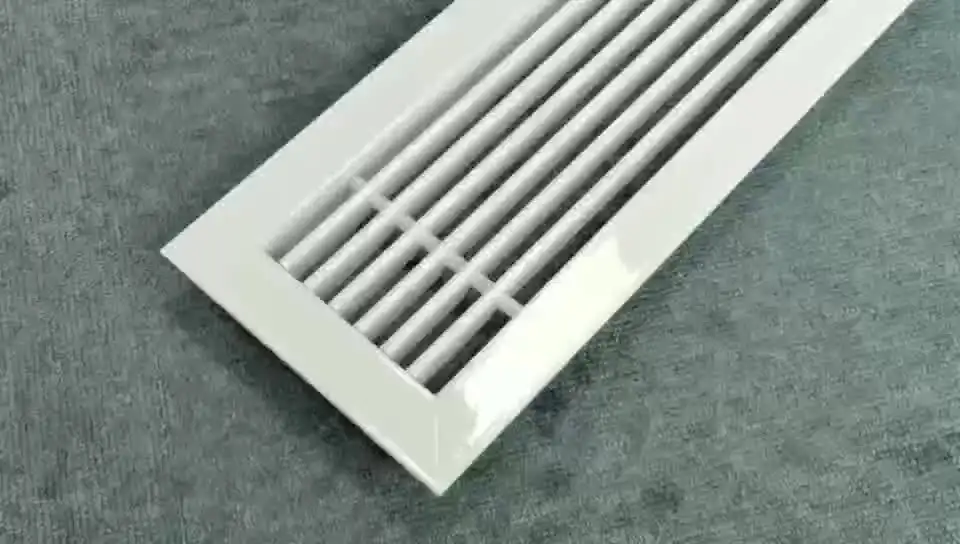

    Ventilation ceiling air intake carpark return air bar type linear grille

    Product Description



    *Made of extruded aluminum, powder coated, or anodized.



    Ventilation grille the type linear bar grille is as supply air or extract air variant for comfort zones and industrial zones. Ready-to-install component which consists of a border and fixed horizontal blades.



    Fixed horizontal blades. 0 degree, 15 degree, 30 degree.



    * The linear grille is an extremely versatile air diffsuer that can be used in the floor,sill,wall or ceiling.



    *Concealed spring clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.

    *Also for continuous horizontal runs.

    *The border, face flange: 17mm, 20mm, 25mm, 30mm.











    Features:

    * Removable core optional.

    * Reduced installation time .

    * Reduced height between floors .

    * Easier installation (plug and play) .

    * Lower wiring costs.

    * Higher opoerational security.

    * Maximum flexibility of configuuration and technology.





    Colour :



    * White: RAL 9010, RAL9016,RAL9003

    * Anodized

    * Black





    Structure:











    Specification:



    Standard size (mm) Effective area (m2) Air volume (m3/h)
    400x100 0.021 265
    500x100 0.026 328
    500x150 0.042 529
    800x150 0.067 844
    1000x150 0.090 1134
    800x200 0.075 844
    1000x200

    0.114

    1436
    1000x500 0.335 4221
    1200x500 0.402 5065
    Assumed velocity is 3.5m/s

    Company Information





    Our Services





    * VENTECH is the leading supplier of air diffusion products in the international market.We dedicated in manufacture and design of air diffusion and ventilation for air conditioning system.



    * VENTECH was found in 2006.We have 30000 square meter production area .With about 250 experienced workers.And soon we became a leading air diffuser and grilless manufacturer.



    * We concerntration on high quality and competitive price.We have strict qualtiy control process,and every product is hand inspected to ensure it will be in good quality condition.



    * VENTECH will work to develop new design and technologies to achieve better product performance,easier to install and higher quanlty year on year .



    * VENTECH personnel will always cooperate with the customer to make doing business together and efficient ,fast and pleasant experience .



    * VENTECH is you best choice ,we are ready to cooperate with you to provide a comfortable way of handling air.



     Hot selling :









    Packaging & Shipping



    Packing Details:

    *Neutral packing: export standard carton.
    *Unit packing: heat-shrink film packing for each product, plastic protect corner is optional.
    *All of the productions are inspected carefully by QC before delivery.



    Delivery Time:
    *Normally 30 days production time after receiving the deposit.
    *Urgent orders could be on priority.
    Min. Order
    *If order based on EXW terms, no MOQ is required.
    *If order based on FOB or CNF or CIF terms, there’s MOQ for your options.
    *Container orders will have more favorable price.

    FAQ



    Q: Are you a manufacturer?
    A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 26 countries!!!

    Q: What's the MOQ?
    A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.

    Q: Can you provide free sample?
    A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.

    Q: What's the delivery time?
    A: the delivery time is about 30days.

    Q: what's the payment term?
    A: T/T, L/C

    Q: Can we buy under our own logo?
    A: No problem.

    Q: What is the quality?
    A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!

    Q: Can I be a VENTECH brand distributor?
    A: Yes, you can. Pls contact us for more details.










    The product can withstand any kind of environment such as rainy or snowstorm while providing strong support for the building. This product meets the requirements of building regulations. The product has a low environmental impact through its entire lifecycle. It does not produce any radioactive substance that will do harm to both people and the environment. This product meets the requirements of building regulations.
