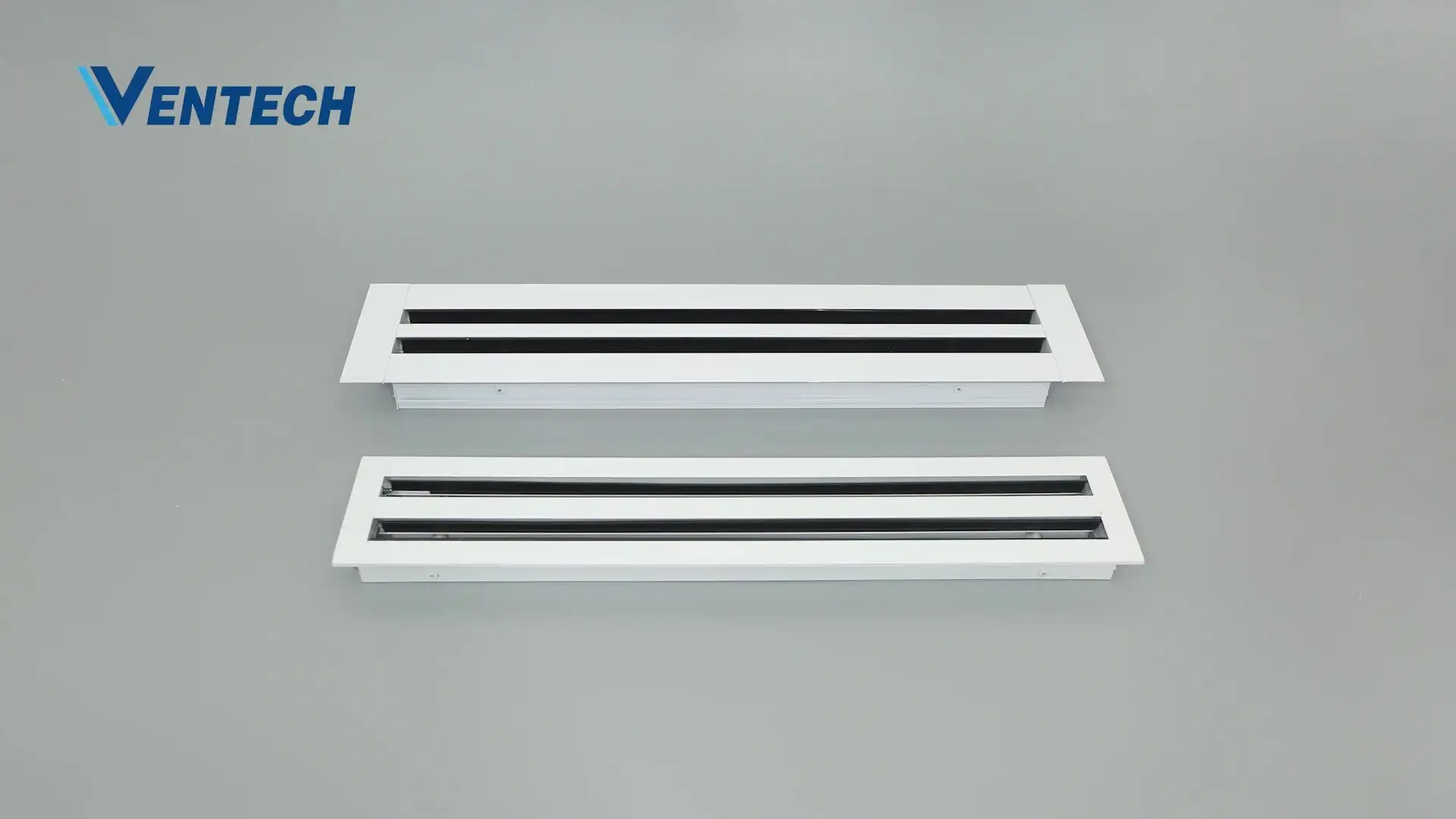

VENTECH Hvac High quality AL air conditioning linear slot diffuser

VENTECH Hvac High quality AL air conditioning linear slot diffuser

VENTECH Hvac High quality AL air conditioning linear slot diffuser

HVAC Systems,Ventilation
1 - 100(Pieces):10(days),>100(Pieces):Negotiable(days)
Sea freight
Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)
Get Latest Price
Get the latest price
Quantity Needed:
Quick Details
Warranty:1 Year
After-sale Service:Online technical support
Project Solution Capability:graphic design, total solution for projects
Application:Office Building
Design Style:Contemporary
Place of Origin:Guangdong, China
Brand Name:VENTECH
Model Number:LSD-VA
Size:All size available
Payment terms:TT,LC
VENTECH Linear Bar Grille
Product name
Linear Slot Diffuser
0.6/0.7/0.8/0.9/1.0 mm
Air Damper/ Plenum Box
HVAC Duct System Installation
Supply Air/Return Air
Standard Color
White Ral 9016/9010/Customized
Product Keywords
Linear Slot Diffuser,Air Conditioning Linear Diffusers

Product Description

VENTECH Slot Diffusers direct the air from air conditioning systems at an angle into the room. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air.
The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.
(1)Slot diffusers have adjustable air control elements. A hit & miss damper (optional) simplifies volume flow rate balancing for commissioning. Slot diffusers are space saving supply and extract air combinations.
(2)The linear slot diffuser repersents the most popular air distribution design option for almost any interior applications .It's blades are adjustable to facilitate accurate control of air flow direction.Specially designed hit and miss damper allows for easy control of air volume.

Product Feature

(1)Nominal size: 1slot, 2slots, 3slots, 4slot, 5slots. Length customized.
(2)Diffuser made of extruded aluminum.
(3)High induction results in a rapid reduction of the temperature difference and airflow velocity.
(4)Butterfly damper optional.
(5)Individually adjustable air control elements to meet individual local requirements.
(6)For horizontal installation into walls and bulkheads.
(7)For high room air change rates. (8)LSD-VA is the standard one. LSD-VB is with the removable core.
Actual Display
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 26 countries!!!

Q: What's the MOQ?
A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.

Q: Can you provide free sample?
A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.

Q: What's the delivery time?
A: The delivery time is about 30days.

Q: What's the payment term?
A: T/T, L/C.

Q: Can we buy under our own logo?
A: No problem.

Q: What is the quality?
A: We offer high quality products. VENTECH is famous for it's high quality and most competitive price!

Q: Can I be a VENTECH brand distributor?
A: Yes, you can. Pls contact us for more details.
Our air units is highly recommended by customers for its high reliability. Its dimension can be customized according to different applied areas. The devotion to the quality of air units helps Ventech to be a leading manufacturer in the industry. Its dimension can be customized according to different applied areas.
