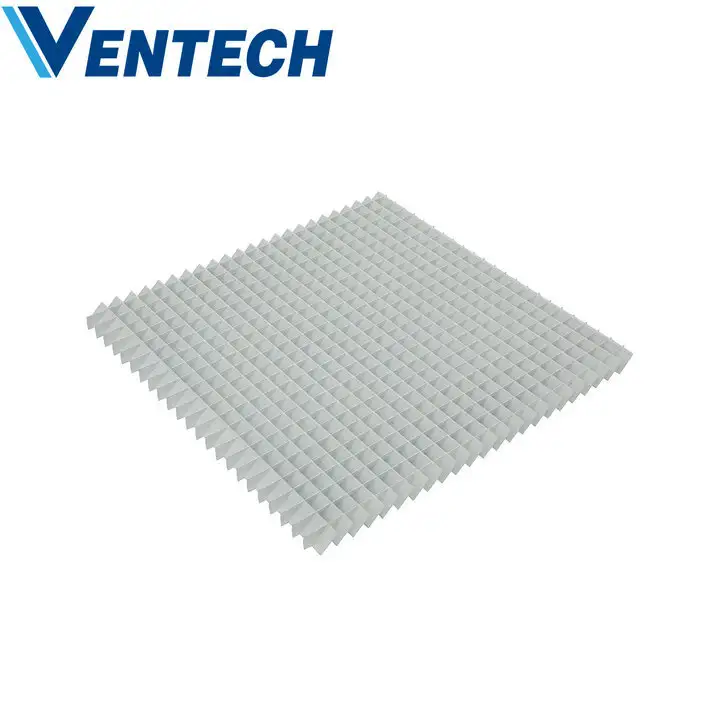

Ventech Eggcrate Grille VEG-C

* Comprising a core with a free area of over 90%, egg crate grilles are designed to handle large air volumes without generating excessive noise or impeding ventilation system function with excessive pressure drops. This is ideal for areas requiring high air changeover rates like restaurant kitchens, painting booths etc.

* Egg crate grilles are available in the following series:

ECG: 0° core (standard)

ECG45: 45° core (optional)

Options include hinged and removable cores, rear mounted opposed blade dampers for airflow balancing, and polyester powder coating to any RAL/BS colour.

* Ventilation grille the type eggcrate grille is as extract air grille for comfort zones and industrial zones

* EG-VA is the standard one, EG-VB is removable with a G4 filter, EG-VC is eggcrate core.

1. For exhaust air.

2. eggcrate core in size 12.7×12.7×12.7mm.

3. For installation in ceilings.

4. Made of extruded aluminum, powder coated.

5. Concealed clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.

6. Hinged type eggcrate grille available with a G4 filter.

7. Filter washable and changeable.
