VENTECH aluminum return grille air 4 way ceiling square diffuser

VENTECH aluminum return grille air 4 way ceiling square diffuser

Type: HVAC Systems,Ventilation

Lead_Time: 1 - 600(Pieces):15(days),>600(Pieces):Negotiable(days)

shipping: Sea freight

Customization: Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)

Price: Get Latest Price

Inquire Online

Get the latest price

Quantity Needed：

Pieces

E-mail：

Related Products

Saudi Arabia aluminum round circular air diffuser

Hvac Fixed Blades Aluminum Exhaust Air Egg Crate Return Grille for Commercial Project Used

Vietnam Used Air Conditioner Jet Diffsuser Round Ceiling Adjustable Air Vents Jet Nozzle Diffusers

Ventilation stainless steel ball weather louver vent

Product Information
Customer Reviews

Overview

Quick Details

Warranty:5 years

After-sale Service:Online technical support, Free spare parts, Other

Project Solution Capability:graphic design, total solution for projects, Others

Application:Apartment

Design Style:EUROPEAN

Place of Origin:Guangdong, China

Brand Name:VENTECH

Model Number:SCD-VA

Material:Aluminum

Function:Return Air

Feature:Adjustable

Usage:Air Conditioning Terminal

Shape:Square

Color:White

Video Description

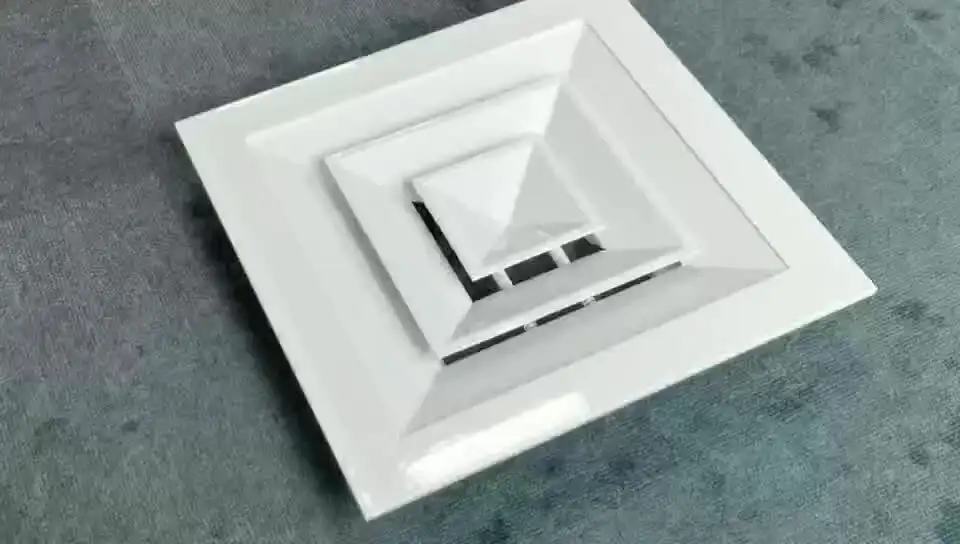

* Square ceiling diffuser is an integrated design ,where the diffuser frame is punched and stamped in one piece with the diffuser core. The diffuser is designed to deliver air equally in all 4 directions .

* 4 way diffuser is usually with damper for supply air .Damper is optional.It fixed rigidly to the frame by aluminium rivets .Fixing by spring clips as option.

* SCD-VA,SCD-VB SCD-VC are the three kinds of square air diffusers which the airflow flatly, they are straight-edge diffuser, chamfer-frame diffuser, and new type of emovable diffuser.

* They are mainly used for studios, hospitals, theaters, classrooms, concert halls, libraries, recreation hall, theater lounge, general offices, shops, hotels, restaurants and gymnasium, and so on.

* In order to avoid the noise interference in a variety of environment, except determine the wind speed by the neck according to performance table, it should consider the installing height and surroundings.

Drawing:

Selection Tables:

standard size AxA (mm)	BxB(mm)	Effective area(m2)	Air volume(m3/h)	Throw Max. (m)
150x150	295x295	0.014	119	0.90
225x225	370x370	0.028	240	1.40
300x300	445x445	0.049	400	1.70
375x375	520x520	0.069	600	2.00
450x450	595x595	0.097	840	2.40
525x525	670x670	0.130	1120	2.55
600x600	745x745	0.169	1460	2.70

Product details:

The product has been more popular than before and gained more and more customers. With a beautiful curved edge, this product shows an eye-catching look. The product has attracted more and more customers in the industry due to its favorable advantages. With a beautiful curved edge, this product shows an eye-catching look.
