Return Air Conditioner Vent Ventilation Aluminum Adjustable Grill Cover Gravity Air Louvers For Hvac System

Return Air Conditioner Vent Ventilation Aluminum Adjustable Grill Cover Gravity Air Louvers For Hvac System

Return Air Conditioner Vent Ventilation Aluminum Adjustable Grill Cover Gravity Air Louvers For Hvac System

Type
HVAC Systems,Ventilation
Lead_Time
1 - 800(Pieces):15(days),>800(Pieces):Negotiable(days)
samples
US$0.50/Pieces, 1 Piece (Min. Order)
shipping
Sea freight
Customization
Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Warranty:1 Year
After-sale Service:Other, NONE
Project Solution Capability:NONE
Application:Office Building
Design Style:Modern
Place of Origin:Guangdong, China
Brand Name:Ventech
Model Number:GL-VA
Product name:Gravity Louver
Material:Aluminum
Color:RAL 9003/9010/9016
Type:Wall Mounted
Shape:Rectangle
Accessories:Oppose Blade Damper Optional
Function:Return Air Ventilation
Free sample:Available
VENTECH GRAVITY LOUVER
Item name
Gravity Louver
Application
Residential/HVAC
Color
Customized Color
Airflow
150-800CMH
Thickness
1.0mm
Material
Aluminum
Function
Exhaust air/Return air
Size
Customized Size
Installation
Ceiling/Wall Mounted Installation
Product Keywords
gravity louver

Product description

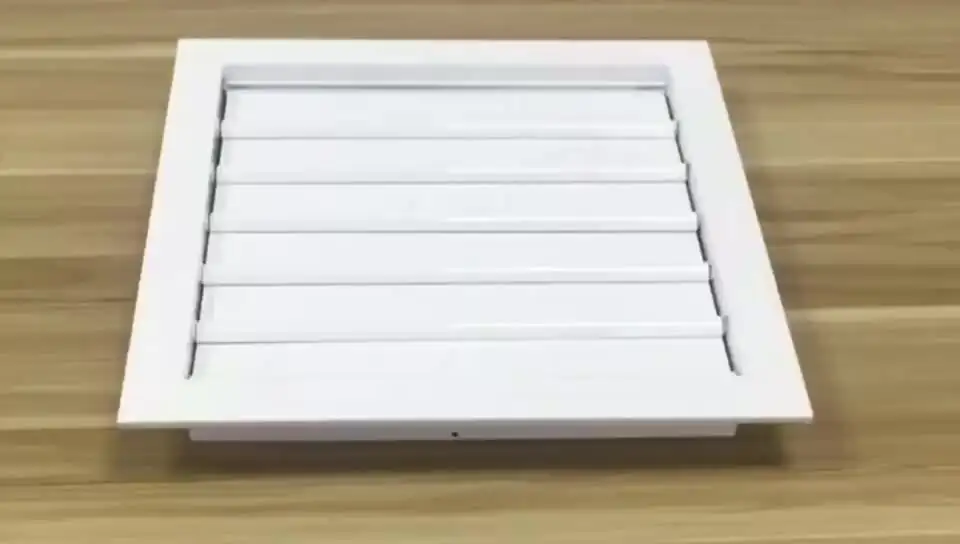

* The GL is a wall mounted device that is composed of a set of horizontally mounted blades that are normally closed and are free to rotate around their horizontal axis.
* This louver serves as a non-return damper and can be used at the exit terminal of exhaust ducts and fans.
* A certain pressure is usually required before the damper opens to expel the exhaust air, which ensures the elimination of back flow.
* The blades are made from light weight aluminium sheets while the frame is made from extruded aluminium. 30 mm frame as a standard.

Product feature

1. They are used for air extraction and automatic closing of duct when the fan is switched off.
2. They consist of a frame and movable plates mounted horizontally one above the other.
3. They are installed only vertically with blades downwards.
4. Made of extruded aluminum, powder coated.
5. Finishing:White powder coating RAL9016,RAL9010,or customized color.
The product is able to stay clean all the time and requires less maintenance, which will be a benefit for property developers to save budgets. This product has the advantage of corrosion resistance. The product provides benefits for people by increasing comfort and well-being and helping to maintain the healthy air quality of buildings. This product has the advantage of corrosion resistance.
