Removable Core Ceiling Diffuser 4 Way Square Air Diffuser-Ventech

Related Products

Saudi Arabia aluminum round circular air diffuser

Hvac Fixed Blades Aluminum Exhaust Air Egg Crate Return Grille for Commercial Project Used

Vietnam Used Air Conditioner Jet Diffsuser Round Ceiling Adjustable Air Vents Jet Nozzle Diffusers

Ventilation stainless steel ball weather louver vent

Product Information
Customer Reviews

Overview

Quick Details

Warranty:3 years

After-sale Service:Online technical support, Return and Replacement

Project Solution Capability:graphic design, total solution for projects

Application:Hotel, Air Conditioning Ventilation System

Design Style:commercial

Place of Origin:Guangdong, China

Brand Name:OEM

Model Number:SCD-VA

Product name:Square Air Diffuser

Material:Aluminum

Material thickness:0.8/1.0/1.2mm

Shape:Square

neck size:150/225/300/375/450

Surface finish:Powder Coating

Standard Color:Ral9016 / Ral9010 / Anodized Silver

Accessories:Air Damper Optional

Feature:Easy Installation

Professional Air Ceiling Diffusers and Air Grilles Manufacturer

Product Description

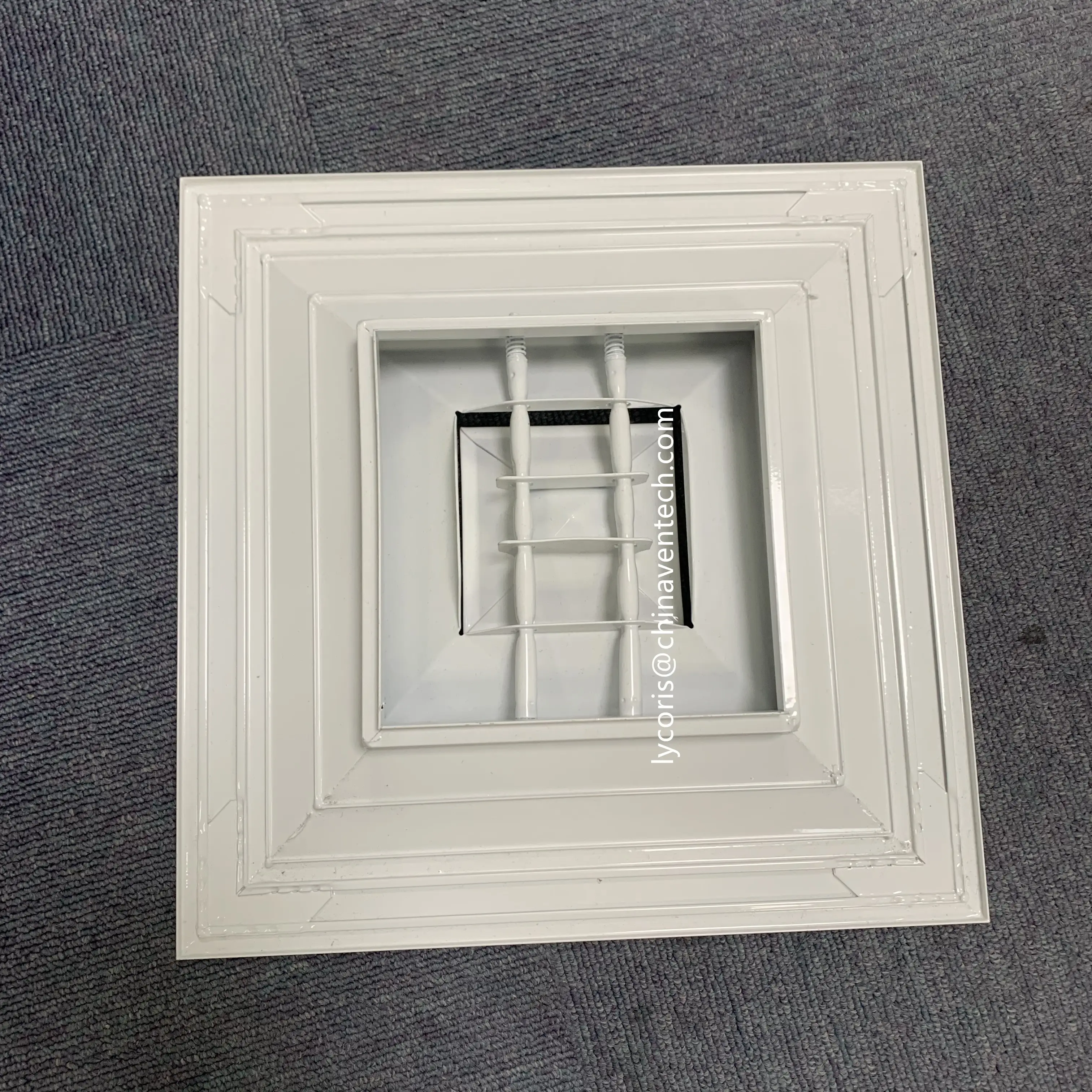

SQUARE CEILING DIFFUSER

VENTECH square ceiling diffuser, the frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity. Core can be easily removable and interchangeable to allow for maximum flexibility in installation, maintenance, and damper adjustment. Damper is fixed by spring clips. Stamped frame and core available.

Available in rectangular sizes as option. Made in all rectangular shapes for 2,3, and 4 way blows to accommodate rooms of irregular shape

Specification:

• Flange: 145mm

• Neck Height: 45mm

• Powder coating; various colors are available.

Details:

Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010, Natural anodized aluminum finish.
Material thickness: 1.2mm
Accessory: OBD, Neck adaptor

Size:

Any size available
Overall face size = Neck size +145mm

MODEL:

SCD-VA

SCD-VB

Standard size

Item Code	Neck Size(mm)	Face Size(mm)
SCD-VA/VB	150x150	295x295
SCD-VA/VB	225x225	370x370
SCD-VA/VB	300x300	445x445
SCD-VA/VB	375x375	520x520
SCD-VA/VB	450x450	595x595

SCD-VC- Face Size 595x595mm

TYPES:

ACCESSORIES:

AIR DAMPER		AIR ADAPTOR

The product can be designed to help the building projects stand out, creating eye-catching shapes without compromising the infrastructure and appearances. Its dimension can be customized according to different applied areas. The product is one of the best construction materials as it does not put any strain on the walls or the base of the building. Its dimension can be customized according to different applied areas.
