Air Diffuser and Air Grille

Home  > Products  > new category  > Air Diffuser and Air Grille  >

Removable core air outlet round duct diffuser with damper

Removable core air outlet round duct diffuser with damper

Removable core air outlet round duct diffuser with damper

Type
HVAC Systems,Ventilation
Lead_Time
1 - 100(Pieces):25(days),>100(Pieces):Negotiable(days)
shipping
Sea freight
Customization
Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Warranty:1 Year
After-sale Service:Free spare parts
Project Solution Capability:total solution for projects
Application:Hotel
Design Style:Modern
Place of Origin:Guangdong, China
Brand Name:VENTECH
Model Number:RCD-VA
Material:Aluminum
Thickness:1.0mm
Color:White or anodized
Size:5 sizes
Function:Ventilaion
Shape:Round
Payment terms:TT,LC
Video Description

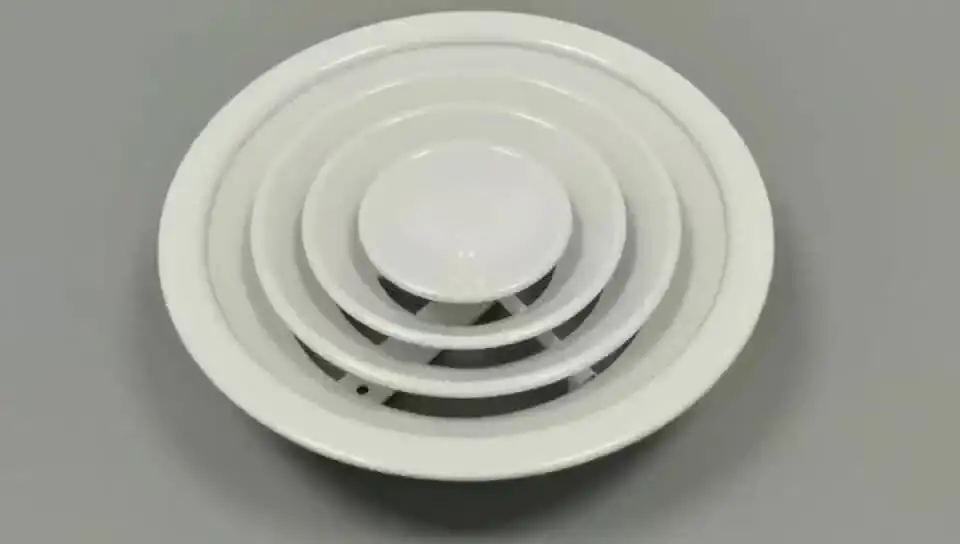

Removable core air outlet round duct diffuser with damper

Product Description



* The round diffuser is make of high quality aluminium sheet ,Removable cor allows for fast instllation and easy maintenance.



* The round ceiling diffuser features and artistic air distribution system design that is commoly used in restaurants and private houses where tehre is a need of air conditoning and ventilation.It's round cores generates a large even circular air distribution .



The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.



Ceiling diffusers direct the air from air conditioning systems into the room. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air. Ceiling diffusers allow for large volume flow rates. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.



Material : Aluminium
Function : Air Supply and Return
Shape : Round
Size : 150mm,200mm,250mm,300mm,350mm
Installation : Ceiling
Feature: Decorative, Adjustable ,Durable
Accessories Damper ,Installation bridge,Screws
Usage : HVAC System Terminal
Package : Inner PVC wrap ,outer strong carton box
Deliver time : 30 Days after Receipt the Deposit
Shipment : FCL,LCL





Features:

The standard nominal sizes are 150, 200, 250, 300, 350, 400, 450, 500, 595x595.

Diffuser face and blades are made of aluminum sheet, powder-coated.

Removable core for better installation and maintenance.

 For radial air discharge. For supply and extract air. For all types of ceiling systems.

For a rapid reduction of the temperature difference and airflow velocity.

Butterfly damper optional.

Attractive design element for building owners and architects with demanding aesthetic requirements.



Color:



* White: RAL 9010, RAL9016,RAL9003

* Anodized





Structure :



 Specification:

Standard size(mm) ØD (mm) ØA (mm) ØH (mm) Air Volume(m3/h) Throw Max.(m)
150 145 250 210 134 1.3
200 195 300 260 242 1.55
250 245 350 310 359 1.8
300 295 400 360 503 2.2
350 345 450 410 665 2.4
Datas are chosen when the air velocity is 2.5m/s and the velocity at throw distance is 0.25m/s
