Plastic Damper Optional Round Ceiling Air Diffuser Aluminum Diffuser

Plastic Damper Optional Round Ceiling Air Diffuser Aluminum Diffuser

Plastic Damper Optional Round Ceiling Air Diffuser Aluminum Diffuser

Type
HVAC Systems,Ventilation
Lead_Time
1 - 100(Pieces):15(days),101 - 500(Pieces):30(days),>500(Pieces):Negotiable(days)
shipping
Sea freight
Customization
Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Warranty:1 Year
After-sale Service:Online technical support, Return and Replacement
Project Solution Capability:graphic design
Application:Office Building
Design Style:Modern
Place of Origin:Guangdong, China
Brand Name:Ventech
Model Number:RCD-VA
Product name:Round Diffuser
Material:Aluminum
Material thickness:1.0mm-1.2mm
Shape:Round Shaped
Diameter Size:150,200,250,300,350,400,450
Surface finish:Powder Coating
Standard Color:RAL9010 / RAL9016
MOQ:10pcs
Relative product:Jet Diffuser
Function:Exhaust Air
Professional Air Ceiling Diffusers and Air Grilles Manufacturer



Product Description

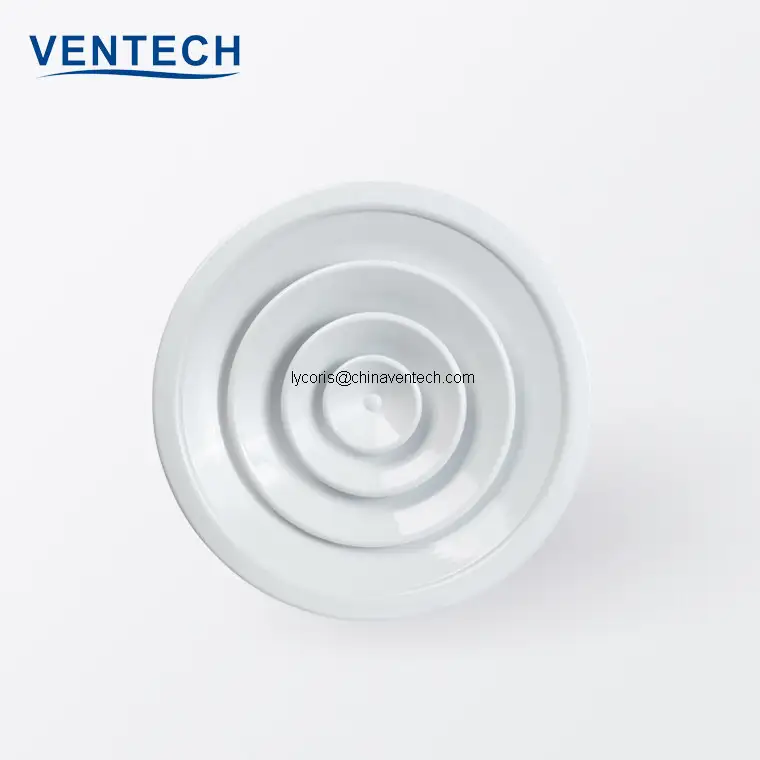

VENTECH Round diffusers from high quality aluminum sheets. Ventech round diffusers are also available with removable core for easy access and maintenance of ductwork. Round diffusers are generally installed on ceiling tiles or exposed ductwork using  round ducts for supply and return air HVAC applications.



TYPE
RCD-VA/VC. This Model can be made into standard sizes only. With straight edge, perfect look and most popular. Different between VA & VC type will be the way to assemble inner core, VA type was installed by screw which is the standard design, VC type was installed by plastic part which is a new design.



Technical data:

round diffuser



standard size (mm)

Φ BACK

ΦA FACE

air volume (m³/h)

throw Max(m)

150

145

250

134

1.3

200

195

300

242

1.55

250

245

350

359

1.8

300

295

400

503

2.2

350

345

450

665

2.4

Datas are chosen when the air velocity is 2.5m/s and the velocity ar throw distance is 0.25m/s


RCD-VB. This Model can be made into standard face size 595x595mm, with Dia.150, Dia.200, Dia.250, Dia.300, Dia.350 as neck size opitional. With curve edge, perfect look and most popular.


RCD-VH is high ceiling round diffuser, with removable center core, using for 8m height space.


Standard sizes as below:

·         Neck size:150mm, 200mm, 300mm, 350mm, 400mm, 450mm
·         Height: 50mm
·         Face size= neck size+100mm


Optional Accessories


·         Plastic butterfly damper
Notice: The above accessories are optionals. Without any specified, we deliver the products without any accessories.



Color:
·         Ral classic color.
·              -standard Ral 9016 or 9010
·              -other colors optional.
·         Anodized
·         Matt or smooth surface

Package:
·         pack in carton, pallet, container.
·         10pcs/ctn without damper
·         5pcs/ctn with damper
