Air Diffuser and Air Grille

Home  > Products  > new category  > Air Diffuser and Air Grille  >

Indoor ventilation aircon fixed slot diffuser

Indoor ventilation aircon fixed slot diffuser

Indoor ventilation aircon fixed slot diffuser

Type
HVAC Systems,Ventilation
Lead_Time
1 - 100(Pieces):25(days),>100(Pieces):Negotiable(days)
shipping
Sea freight
Customization
Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Warranty:1 Year
After-sale Service:Free spare parts
Project Solution Capability:total solution for projects
Application:Hotel
Design Style:Modern
Place of Origin:Guangdong, China
Brand Name:VENTECH
Model Number:LSD-VA
Material:Aluminum
Thickness:1.2mm
Color:White
Size:All size available
Function:Ventilaion
Shape:Rectangular
Payment terms:TT,LC

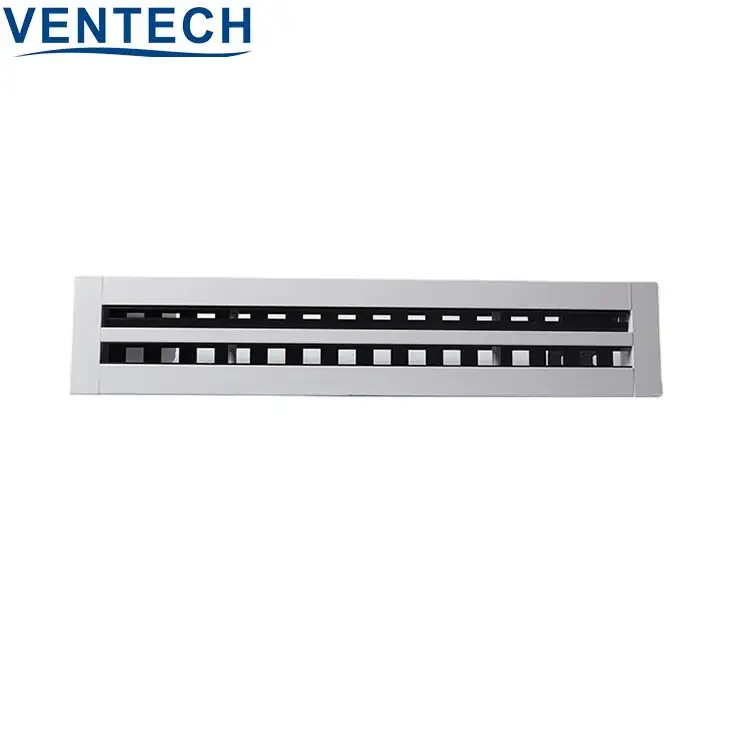

Indoor ventilation aircon fixed slot diffuser

Product Description



* VENTECH Slot diffusers direct the air from air conditioning systems at an angle into the room. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.

* Slot diffusers have adjustable air control elements. A hit & miss damper (optional) simplifies volume flow rate balancing for commissioning. Slot diffusers are space saving supply and extract air combinations.

* The linear slot diffuser is a type of air ouotlet with 1 or more slots. It is typically used in meeting rooms or hotel.



* The linear slot diffuser repersents the most popular air distribution design option for almost any interior applications .It's blades are adjustable to facilitate accurate control of air flow direction.Specially designed hit and miss damper allows for easy control of air volume.



* Suitable for rooms with ceiling heights from 2.5m to 4m.Available in 1 to 5 slots configuration .







Features:

Nominal size: 1slot, 2slots, 3slots, 4slot, 5slots. Length customized.

*Diffuser made of extruded aluminum.

* High induction results in a rapid reduction of the temperature difference and airflow velocity.

Butterfly damper optional.

Individually adjustable air control elements to meet individual local requirements

Diffuser available in RAL colors.

For room heights up to 4 m (lower edge of suspended ceiling)

For horizontal installation into walls and bulkheads

* Hit & miss damper optional.

* End angles, modular angles, 45°cutting end angles available.

Colour :



* White: RAL 9010, RAL9016,RAL9003



* Other color available



Structure:




Technical data :






Thickness (1.2mm) , slot distance 20mm
Slot number Face size (mm) Neck size (mm) Heigh (mm)
1 slot 84 40 49
2 slotss 120 76 49
3 slots 150 111 49
4 slots 191 147 49
5 slots 226 182 49
6 slots 262 218 49
