Application:Mall, Air Conditioning Ventilation System
Place of Origin:China
Item name:Linear bar grille
Installation:Ceiling/Wall Mounted Installation
Use:HVAC Duct System Installation

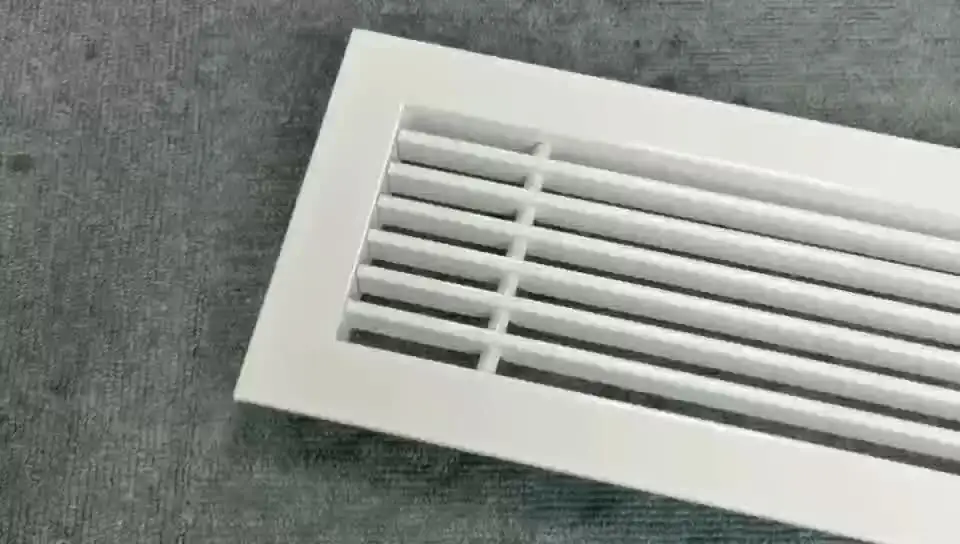

Linear bar grille:
Linear air grille is rectangular aluminium grille with fixed deflectors and can be used in commercial and industrial premises. The grille is intended for supply, or return air. It is build into wall, ceiling, or window sill. Linear bar grille is supplied with springs as a standard. As an accessory there are plenum boxes, mounting frames and dampers available.
All grilles, both with and without frames, can be manufactured with a hingeable access panel at one or both ends of the grille. The standard length of each panel piece is 150mm, although this length can be varied upon request.
Due to the large amount of possibilities offered by this type of grille, it is recommended to consult in specific vases with special dimensions.
This range of grille has the necessary characteristics for its integration in contemporary architecture and interior design.
They can be installed in ceilings, walls, consoles, fan-coils, induction units, both for supply and return air application.
The maximum recommended length is 2m in one piece, although 2 or more modules can be combined to give appearance of continuity.
linear bar grille
powder coated finished or anodized
anodized color or RAL color
stable structure and easy installation
Air ventilation for air conditioner
10pcs per carton or 5 pcs per carton
volume control air damper
· Material: Aluminium Extruded Profile.
· Construction: Construction is of a fixed blades,0,15 or 30 degree blades are available
· Powder Coating Colour: RAL 9010, RAL 9016 or customised, or anodized
· Cores: Non-removable.
· Optional: With or without dampe
Removable core design LG-VB:
10 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.
*Neutral packing: export standard carton. *Unit packing: heat-shrink film packing for each product, plastic protect corner is optional. *All of the productions are inspected carefully by QC before delivery.
Delivery Time: *Normally 30 days production time after receiving the deposit. *Urgent orders could be on priority. Min. Order *If order based on EXW terms, no MOQ is required. *If order based on FOB or CNF or CIF terms, there’s MOQ for your options. *Container orders will have more favorable price.
Q: Are you a manufacturer? A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 50 countries!!!
Q: What's the MOQ? A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.
Q: Can you provide free sample? A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.
Q: What's the delivery time? A: the delivery time is about 30days.
Q: what's the payment term? A: T/T, L/C
Q: Can we buy under our own logo? A: No problem.
Q: What is the quality? A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!
Q: Can I be a VENTECH brand distributor? A: Yes, you can. Pls contact us for more details.
We also run air units for years. This product meets the requirements of building regulations.
Ventech has a high-tech professional team integrating with Ventech HVAC to keep our technology ahead on air units field. This product meets the requirements of building regulations.
