Overview

Quick Details

Warranty:1 Year

After-sale Service:Return and Replacement

Project Solution Capability:NONE

Application:Mall, Air Conditioning Ventilation System

Design Style:Modern

Place of Origin:China

Brand Name:VENTECH

Model Number:SDG-VA

Item name:Single deflection grille

Color:Customized Color

Airflow:150-1300CMH

Thickness:1.0mm

Material:Aluminum Alloy

Function:Air Outlet

Size:Customized Size

Installation:Ceiling/Wall Mounted Installation

Feature:Adjustable blades

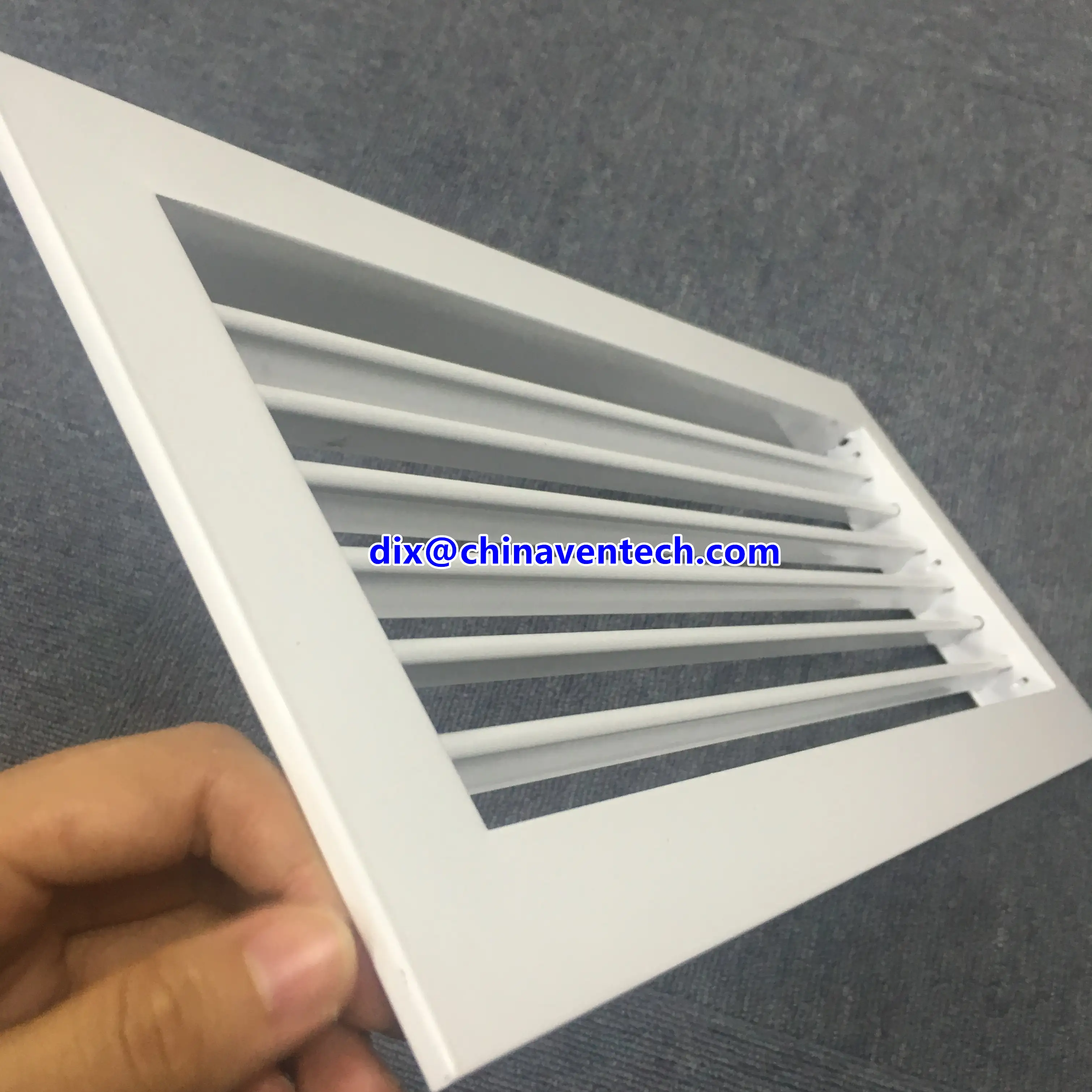

Single Deflection Grille SDG-VA:

Ventilation grille the type rectangular single deflection grille is as supply air or extract air variant for comfort zones and industrial zones. Ready-to-install component which consists of a border and individually adjustable, horizontal or vertical blades.

• Nominal length: 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000.
Nominal height: 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000.
Other dimensions upon request.

• Directed supply air discharge for mixed flow ventilation.
• Blades are individually adjustable to meet different local requirements.
• For installation in walls.
• Made of extruded aluminum, powder coated.
• Concealed fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.
• Available in RAL colors, or Anodized color.

Overview

Price premium quality extruded aluminum louvered, single deflection grilles are the choice of architects and engineers who demand superior performance, design, and construction.

Features

Fully adjustable airfoil blades
Extruded aluminum frame
Single or double deflection blades
Blades parallel to the long or short dimension
Optional architectural finishes, including powder coated finished, mill finished and anodized

Typical Applications

The sleek lines of the extruded aluminum frame and blades make the single deflection grille well suited to architectural applications. With clean lines and single piece sections, the grille is ideal for installations that demand large grilles in single piece construction.

Construction Options

Core
- Single Deflection (SDG-VA)
- Double Deflection (DDG-VA)
Blade Orientation
- Parallel to the long dimension
- Parallel to the short dimension
Mounting
- Surface mount
- Lay-In
- Exposed Duct
- Panel Mounted
Available Sizes
- Any sizes as required
- Oversized construction available
Options
- Aluminum Opposed Blades Damper (OBD)
- Spring clips for grilles
- Holes and screws

Drawings&sizes:

FEATURES:
· Aluminum grilles, adjustable blades

· Material: Aluminium Extruded Profile.

· Construction: Construction is of a fixed core, while a removable core option is available

· Designation: Vertical front blades or Horizontal blades

· Powder Coating Colour: RAL 9010, RAL 9016 or customised, or anodized

· Cores: Non-removable.

· Optional: With or without damper.

· Accessories: Sub frame SFR, Volume control damper, OBD, CLIP mounting clips for sub frame

· Size manufactured on request

For supply air, having a single set of fully adjustable blades to give directional control of the air pattern in four directions if required. Suitable for wall or duct mounting. Also available with curved face for circular duct installations.

Product details:

Double defleciton grille:

Package:

10 pcs/ctn or 5pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.

Packing Details:

*Neutral packing: export standard carton.
*Unit packing: heat-shrink film packing for each product, plastic protect corner is optional.
*All of the productions are inspected carefully by QC before delivery.

Delivery Time:
*Normally 30 days production time after receiving the deposit.
*Urgent orders could be on priority.
Min. Order
*If order based on EXW terms, no MOQ is required.
*If order based on FOB or CNF or CIF terms, there’s MOQ for your options.
*Container orders will have more favorable price.

FAQ:

Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 50 countries!!!

Q: What's the MOQ?
A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.

Q: Can you provide free sample?
A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.

Q: What's the delivery time?
A: the delivery time is about 30days.

Q: what's the payment term?
A: T/T, L/C

Q: Can we buy under our own logo?
A: No problem.

Q: What is the quality?
A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!

Q: Can I be a VENTECH brand distributor?
A: Yes, you can. Pls contact us for more details.

The product accounts for reduced energy bills. Using this product will cut the spending at home, workplace, or industries. It is easy to mount without the use of tools. Most of our customer who bought it said it is easy to care. It does not need frequent and extensive ironing because it does not easily get wrinkles. It is easy to mount without the use of tools.
