Linear Slot Difuser

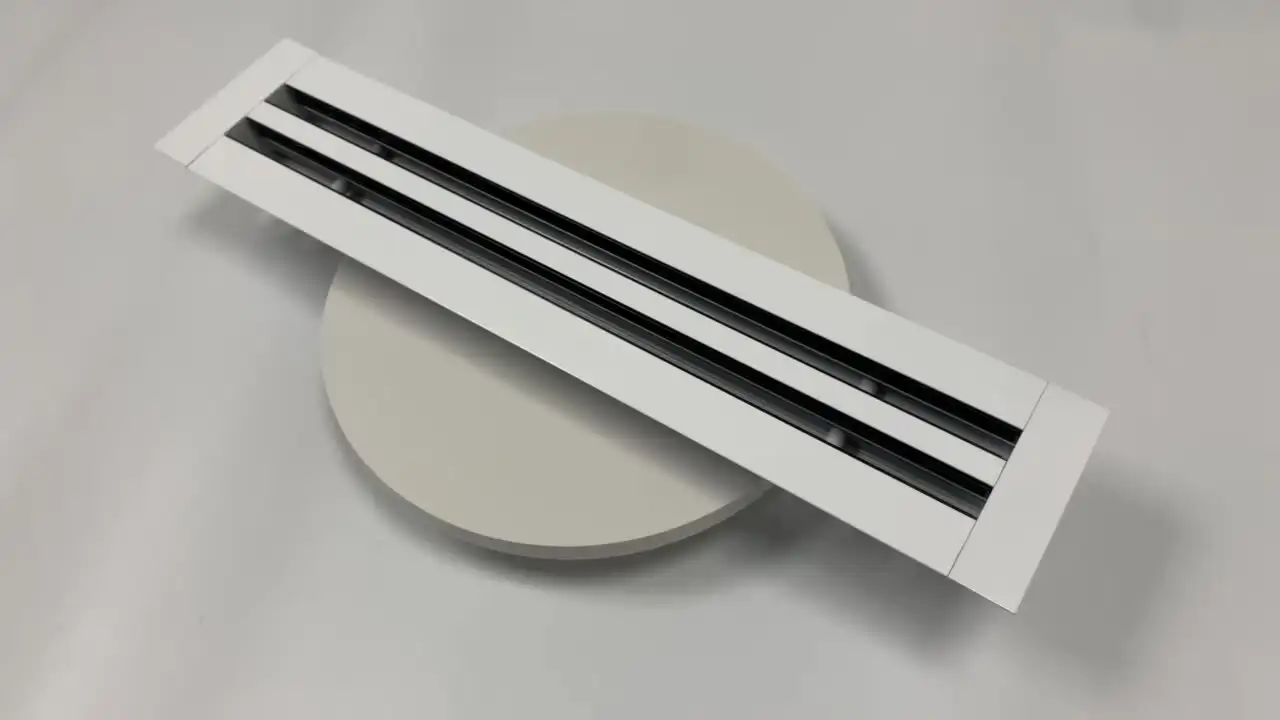

The Slot Diffuser (LSD) is an attractive alternative to the ceiling or high sidewall supply diffuser that has been designed for efficient air distribution.
Slot grilles can be installed individually in set of lengths or in a continuous line. Continuous runs can consist of a combination of active and inactive sections as well as combining supply and return air applications.

Product Application

The linear slot diffuser offer high performance in a VAV outlet with pattern control and complete blank-off for true design flexibility.

Designed for efficient air distribution at cooling differentials up to 30F.

Product Features

The linear slot diffuser with deflection is constructed of extruded aluminum alloy and with powder coated finish.

The fully adjustable deflection blades allow for air pattern to be controlled along the ceiling, straight down or at the same intermediate setting. The deflection blades are designed so that when in closed position, the air pressure tends to form a tight seal. No need for integral damper to control the air flow.the unique design of LSD series allows the same vane which controls the air pattern to also be adjustable for control of air flow rate. This dampering is accomplished without upsetting the air pattern.

 Drawings&sizes:

FEATURES:

· Material: Aluminium Extruded Profile.

· Construction: Slots are screw tightened from one to another end. Also, have option of placing louvre between the slot.

· Powder Coating Colour: RAL 9010, RAL 9016 or customised, or anodized

· Cores: Non-removable.

· Optional: With or without louvers.

Slot configurations available are 1, 2, 3, 4, 5 and 6 slot.

Product details:

With Damper Strip Supply Air Type:

With Plenum Box Option:

Package:

5 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.
