Hvac return air egg crate - Registers, Grilles & Vents

Hvac return air egg crate - Registers, Grilles & Vents

Hvac return air egg crate - Registers, Grilles & Vents

Type
HVAC Systems,Ventilation
Lead_Time
1 - 600(Pieces):15(days),>600(Pieces):Negotiable(days)
shipping
Sea freight
Customization
Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Warranty:1 Year
After-sale Service:Return and Replacement
Project Solution Capability:NONE
Application:Mall, Air Conditioning Ventilation System
Design Style:Modern
Place of Origin:China
Brand Name:VENTECH
Model Number:EG-VA
Item name:Return Air Eggcrate Grille
Color:Customized Color
Airflow:80-800CMH
Thickness:1.0&0.4mm
Material:Aluminum Alloy
Function:Air Outlet
Size:Standard Size
Shape:Egg crate shape
Installation:Ceiling/Wall Mounted Installation

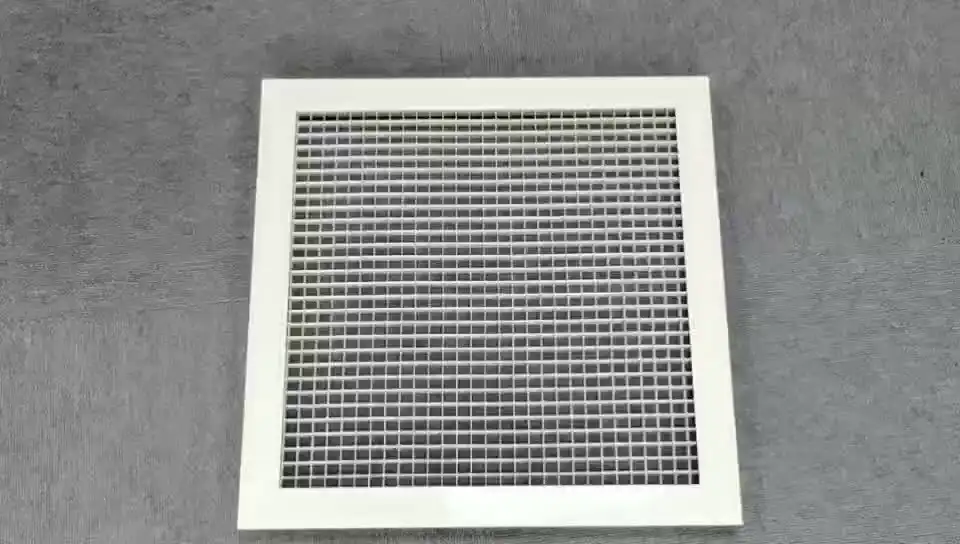

Egg Crate Grille EG-VA:





The egg crate is make of high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.



* Aluminum eggcrate grid is fixed to the frame with aluminum pins .We also have hinged type which core can be easily removable and interchangeable to allow for maximum flexibility in the installation, maintenance and damper adjustment.



* The egfcrate core distance of 12.7x12.7x12.7mm .It's rigid construction provide noiseless performance.



* It is designed for return and exhaust application for air conditioned space.





Features :

* Made of extruded aluminum, powder coated. Eggcrate core in size 12.7x12.7x12.7mm.

For exhaust air

For installation in ceilings.

Concealed clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.

* Hinged type eggcrate grille available with a G4 filter.

Filter washable and changeable.







Colour:

* White: RAL 9010, RAL9016,RAL9003

* Anodized

* Black



Size:

 Nominal length: 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000.



 * Nominal height: 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000.

 * Other dimensions upon request.



 Features:

Comprising a core with a free area of over 90%, egg crate grilles are designed to handle large air volumes without generating excessive noise or impeding ventilation system function with excessive pressure drops. This is ideal for areas requiring high air changeover rates like restaurant kitchens, painting booths etc.



1. For exhaust air.

2. eggcrate core in size 12.7×12.7×12.7mm.

3. For installation in ceilings.

4. Made of extruded aluminum, powder coated.

5. Concealed clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.

6. Hinged type eggcrate grille available with a G4 filter.

7. Filter washable and changeable.



Product details:









EG-VB hinged type egg crate grille:











EG-VR round eggcrate grille :









Package:

10 pcs/ctn or 5pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.

Packing Details:

*Neutral packing: export standard carton.
*Unit packing: heat-shrink film packing for each product, plastic protect corner is optional.
*All of the productions are inspected carefully by QC before delivery.

Delivery Time:
*Normally 30 days production time after receiving the deposit.
*Urgent orders could be on priority.
Min. Order
*If order based on EXW terms, no MOQ is required.
*If order based on FOB or CNF or CIF terms, there’s MOQ for your options.
*Container orders will have more favorable price.



FAQ:



Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 50 countries!!!

Q: What's the MOQ?
A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.

Q: Can you provide free sample?
A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.

Q: What's the delivery time?
A: the delivery time is about 30days.

Q: what's the payment term?
A: T/T, L/C

Q: Can we buy under our own logo?
A: No problem.

Q: What is the quality?
A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!

Q: Can I be a VENTECH brand distributor?
A: Yes, you can. Pls contact us for more details.



High quality, low price and quick delivery are the magic weapons for Yingde Ventech Air Conditioning Co.,Ltd to win the market. This product is available in a broad range of models. Yingde Ventech Air Conditioning Co.,Ltd uses modern management tools to continuously innovate, improve product quality and technology. This product is available in a broad range of models.
