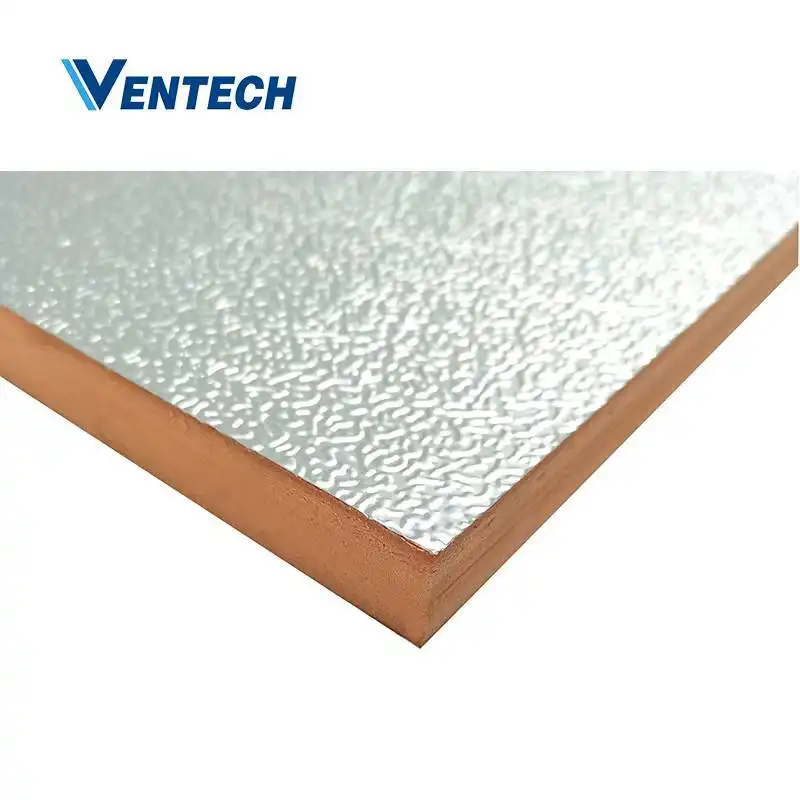

Hvac pre-insulated phenolic air duct panel 20mm for HVAC system 1

Hvac pre-insulated phenolic air duct panel 20mm for HVAC system 2

Hvac pre-insulated phenolic air duct panel 20mm for HVAC system 3

Hvac pre-insulated phenolic air duct panel 20mm for HVAC system 4

Hvac pre-insulated phenolic air duct panel 20mm for HVAC system 5

Hvac pre-insulated phenolic air duct panel 20mm for HVAC system 6

Hvac pre-insulated phenolic air duct panel 20mm for HVAC system

Phenolic ductwork

Model No.:

VPP-FTA-20

MOQ:

40HQ

Payment:

30% TT IN ADVANCE,70% TT BALANCE BEFORE SHIPMENT

Delivery Time:

20 DAYS AFTER RECEIVING PREPAYMENT

Loading Port:

SHENZHEN,CHINA

Logo:

OEM / CHINA

Color:

SLIVER

Model:

VPP-FTA-20

Minimum:

40HQ

Origin:

CHINA

Brand:

OEM / CHINA

Inquiry

Write a Review

Hvac pre-insulated phenolic duct panel is manufactured from Phenolic Foam Pre-insulated Duct Panels and Accessories by a set of special tools. The phenolic duct board consist of panel thickness 20mm, with double-faced 60um aluminium foil, both sides faced with aluminum foil, aluminum sheet, etc.

Phenolic Duct Board Specification
Length	3950/3900m
Width	1200m
Thickness	20,25,30mm
Thermal conductivity	0.030W/m.k
Density	55-65kg/m³
Compressive Strength	0.31Mpa
Water Absorption	0.60%
Dimension Stability	0.20%
Operating Temperature Limits	-25°C to 80°C
Application	Indoor
Fire and smoke performance	ASTM E84
Combustibility Property	Class 0

Hvac pre-insulated phenolic air duct panel is accomplished by following a standardised procedure. The process is the same regardless of the shape of the duct element: tracing, cutting, gluing, folding, taping, flangeing & reinforcement and sealing.

Hvac pre-insulated phenolic air duct panel is widely used in the ventilation systems of central air conditioning units in hotel, supermarket, airport, stadium, workshop, food store, industry and so on.

Hvac pre-insulated phenolic air duct panel 20mm for HVAC system 7

Product Features:

1、panel thickness 20mm, with double-faced folder tendons aluminum foil.

2'、Pre insulated phenolic duct.
