Egg Crate Grille EG-VA:
* The egg crate is make of high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
* Aluminum eggcrate grid is fixed to the frame with aluminum pins .We also have hinged type which core can be easily removable and interchangeable to allow for maximum flexibility in the installation, maintenance and damper adjustment.
* The egfcrate core distance of 12.7x12.7x12.7mm .It's rigid construction provide noiseless performance.
* It is designed for return and exhaust application for air conditioned space.
* Made of extruded aluminum, powder coated. Eggcrate core in size 12.7x12.7x12.7mm.
* For exhaust air
* For installation in ceilings.
* Concealed clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.
* Hinged type eggcrate grille available with a G4 filter.
* Filter washable and changeable.
* White: RAL 9010, RAL9016,RAL9003
* Nominal length: 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000.
* Nominal height: 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000.
* Other dimensions upon request.
Comprising a core with a free area of over 90%, egg crate grilles are designed to handle large air volumes without generating excessive noise or impeding ventilation system function with excessive pressure drops. This is ideal for areas requiring high air changeover rates like restaurant kitchens, painting booths etc.
1. For exhaust air.
2. eggcrate core in size 12.7×12.7×12.7mm.
3. For installation in ceilings.
4. Made of extruded aluminum, powder coated.
5. Concealed clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.
6. Hinged type eggcrate grille available with a G4 filter.
7. Filter washable and changeable.
EG-VB hinged type egg crate grille:

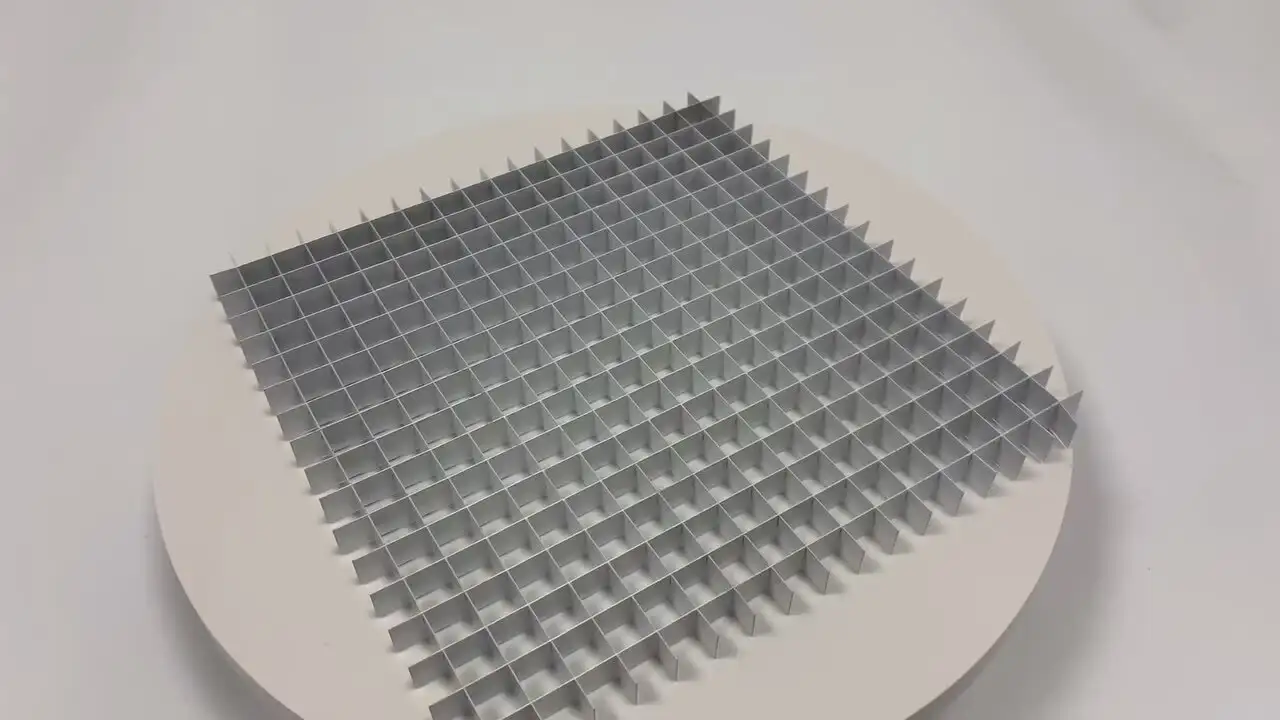

EG-VR round eggcrate grille :
10 pcs/ctn or 5pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.
*Neutral packing: export standard carton.
