Application:Mall, Air Conditioning Ventilation System
Place of Origin:China

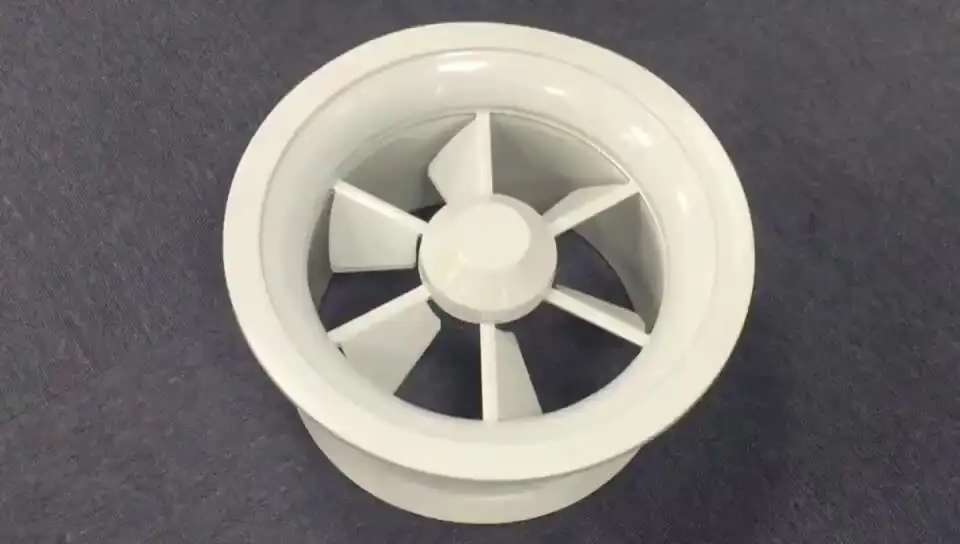

Item name:Round swirl diffuser
Installation:Ceiling/Wall Mounted Installation
VENTECH Round Ceiling swirl diffusers are used as supply air diffusers for high rooms in comfort and industrial zones. For production halls, gymnasiums, theatres and conference rooms as well as for large internal spaces in airports, railway stations and shopping centers.
The round ceiling swirl diffuser is manufactured from aluminium sheet with a white powder coated finish (RAL 9016 or 9010) and is avaible in the following sizes: Dia 200mm, Dia 250mm, Dia 315mm, Dia 400mm, Dia 500mm, Dia 630mm.
For Supply air. High induction, a rapid reduction of the temperature difference and airflow velocity. Discharge direction can be adjusted manually or with an actuator. Ideal for high ceilings. Diffuser available in RAL colors. Slide damper optional. Plenum box optional. Actuator optional for adjusting the air discharge direction.
Hvac Round Ceiling swirl diffusers in air conditioning systems create a swirl to supply air to rooms. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air. Ceiling swirl diffusers allow for large volume flow rates. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.
Hvac Round Ceiling swirl diffusers have adjustable air control blades. Different air patterns allow for cooling or heating mode, or for the adjustment to varying loads. Horizontal air discharge is Omni directional.
1 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.
*Neutral packing: export standard carton. *Unit packing: heat-shrink film packing for each product, plastic protect corner is optional. *All of the productions are inspected carefully by QC before delivery.
Delivery Time: *Normally 30 days production time after receiving the deposit. *Urgent orders could be on priority. Min. Order *If order based on EXW terms, no MOQ is required. *If order based on FOB or CNF or CIF terms, there’s MOQ for your options. *Container orders will have more favorable price.
Q: Are you a manufacturer? A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 50 countries!!!
Q: What's the MOQ? A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.
Q: Can you provide free sample? A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.
Q: What's the delivery time? A: the delivery time is about 30days.
Q: what's the payment term? A: T/T, L/C
Q: Can we buy under our own logo? A: No problem.
Q: What is the quality? A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!
Q: Can I be a VENTECH brand distributor? A: Yes, you can. Pls contact us for more details.
Yingde Ventech Air Conditioning Co.,Ltd always provides air units with good price and thoughtful service. This product has the advantage of corrosion resistance.
Fast delivery, quality and quantity production are Yingde Ventech Air Conditioning Co.,Ltd's advantages. This product has the advantage of corrosion resistance.
