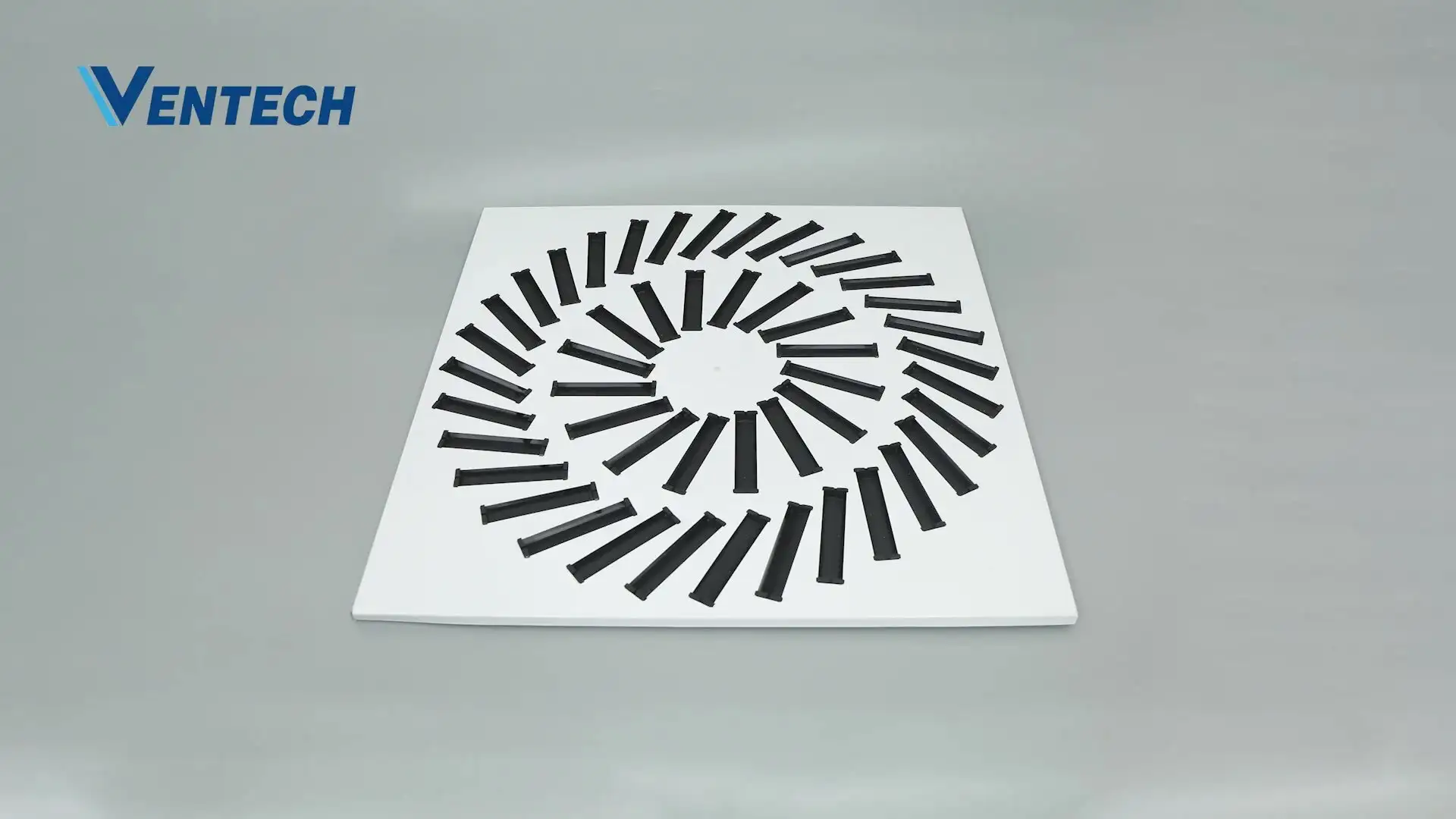

Square Swirl Diffuser
HVAC ceiling vent cover square swirl diffuser
VENTECH produces a wide range of air diffusers, to meet clients' requirements. Square ceiling swirl diffusers are used as supply air or extract air vent for comfort zones.
1. Made of galvanized sheet steel, powder-coated.
2. For supply and extract air.
3. For all types of ceiling systems, and with an extended border also suitable for freely suspended installation.
4. High induction results in a rapid reduction of the temperature difference and airflow velocity.
5. Horizontal swirling supply air discharge for mixed flow ventilation.
6. Ideal for comfort zones.
7. Size 595x595,600x600mm
8. Color 9016,9010,black
* Circular and square ceiling swirl diffusers are used as supply air or extract air diffusers for comfort zones.
* Circular and square ceiling swirl diffusers in air conditioning systems create a swirl to supply air to rooms. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air.
* Circular and square ceiling swirl diffusers allow for large volume flow rates. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.
*Circular and square ceiling swirl diffusers have fixed blades.
SD-VB adjustable slot square swirl diffuser 48slots:
SD-VA fixed type:
5 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.
