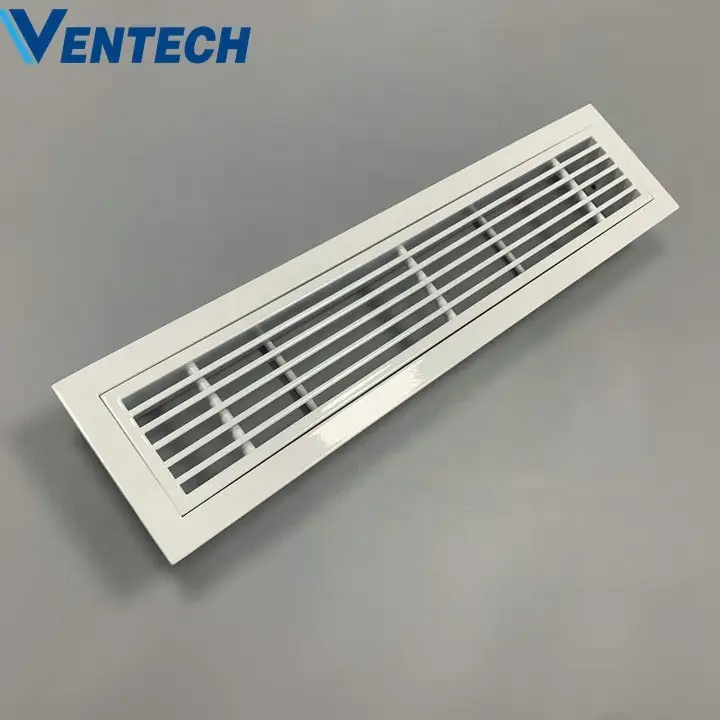

Removable core linear bar grille:
Linear air grille is rectangular aluminium grille with fixed deflectors and can be used in commercial and industrial premises. The grille is intended for supply, or return air. It is build into wall, ceiling, or window sill. Linear bar grille is supplied with springs as a standard. As an accessory there are plenum boxes, mounting frames and dampers available.
All grilles, both with and without frames, can be manufactured with a hingeable access panel at one or both ends of the grille. The standard length of each panel piece is 150mm, although this length can be varied upon request.
Due to the large amount of possibilities offered by this type of grille, it is recommended to consult in specific vases with special dimensions.
This range of grille has the necessary characteristics for its integration in contemporary architecture and interior design.
They can be installed in ceilings, walls, consoles, fan-coils, induction units, both for supply and return air application.
The maximum recommended length is 2m in one piece, although 2 or more modules can be combined to give appearance of continuity.
|Model:||removable core linear bar grille||Material:||aluminum profile|
|Material thickness:||1.0mm||Finish:||powder coated finished or anodized|
|Color:||anodized color or RAL color||Feature:||stable structure and easy installation|
|Function:||Air ventilation for air conditioner||Application:||commercial buildings|
|Packing:||10pcs per carton or 5 pcs per carton||Accessories:||volume control air damper|
· Material: Aluminium Extruded Profile.
· Construction: Construction is of a fixed blades,0,15 or 30 degree blades are available
· Powder Coating Colour: RAL 9010, RAL 9016 or customised, or anodized
· Cores: Removable.
· Optional: With or without damper
Standard fixed core linear bar grille LG-VA:
10 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.
*Neutral packing: export standard carton.
