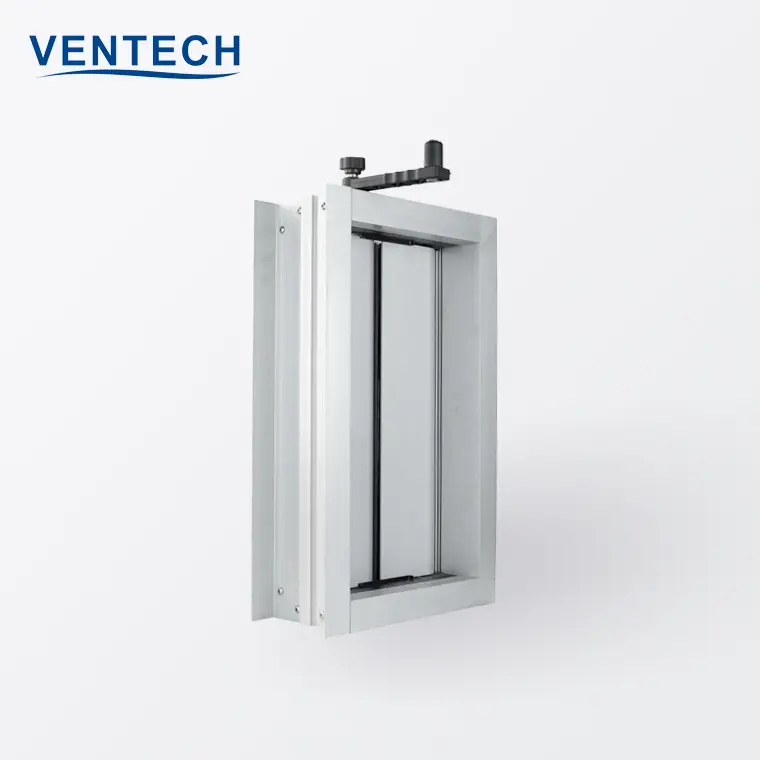

HVAC air duct mounted ceiling aluminum manual air flow volume control damper

HVAC air duct mounted ceiling aluminum manual air flow volume control damper

HVAC air duct mounted ceiling aluminum manual air flow volume control damper

Type
HVAC Systems,Ventilation
Lead_Time
1 - 600(Pieces):15(days),>600(Pieces):Negotiable(days)
shipping
Sea freight
Customization
Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Warranty:1 Year
After-sale Service:Return and Replacement
Project Solution Capability:NONE
Application:Mall, Air Conditioning Ventilation System
Design Style:Modern
Place of Origin:China
Brand Name:VENTECH
Model Number:VCD-VA
Item name:Volume control damper
Color:Anodized
Airflow:150-1300CMH
Thickness:1.2mm
Material:Aluminum Alloy
Function:Air Outlet
Size:Standard Size
Shape:Eyeball shape
Installation:Ceiling/Wall Mounted Installation

VOLUME CONTROL DAMPER:



Volume control dampers need not be overly complicated. The only requirements are that they should have a low leakage when closed, not create too much resistance when open and should be easy to operate. Series VCD Volume Control Dampers satisfy all of these requirements: The 75mm blade pitch with a blade less than 1cm thick at it's widest point, results in very little resistance when open, while the standard blade is shaped perfectly to reduce leakage when closed.

For ease of use, HVC Series VCD Volume Control Dampers are unparalleled. From the low torque blade linkages utilising interconnected lever arms with either low or high temperature parts, to the availability of an aerofoil blade with integrated seal, designed to reduce leakage rates, especially when partnered with stainless steel side seals. Everything about these dampers is designed for smooth, effective operation.

As previously mentioned, a wide range of options including high temperature components can be fitted to your volume control damper. Additional side seals can be incorporated to provide a better shut off when close, without hindering performance when open, and a full range of control methods include



All major components being made from aluminium is also of huge benefit. Not only are these volume control dampers much lighter than their steel counterparts, but they have a greater inherent resistance to the effects of corrosion, enabling use in coastal areas, or facilities like swimming pools where the presence of high humidity and chlorine would quickly affect steel units.HVC Series VCD dampers are able to be manufactured in larger single sizes than similar S900 volume control dampers from our NCA range of products. Thus making them better suited to larger applications where the use of divided sections and the necessary mullions is deemed detrimental to performance.



 Drawings&sizes:





Volume control dampers are specially designed for use in heating, ventilating and air conditioning systems for volume, and flow and pressure control of air within the ducts.



1. It regulates flow of air inside a duct.

2. Temperature control: It helps in maintaining the desired temperature. A volume control damper is an essential part of HVAC system that regulates the temperature and provides efficient heating and cooling service to your building.

3. Pressure control: It maintains the desired pressure.

Product details:

Package:

1 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.

Packing Details:

*Neutral packing: export standard carton.
*Unit packing: heat-shrink film packing for each product, plastic protect corner is optional.
*All of the productions are inspected carefully by QC before delivery.

Delivery Time:
*Normally 30 days production time after receiving the deposit.
*Urgent orders could be on priority.
Min. Order
*If order based on EXW terms, no MOQ is required.
*If order based on FOB or CNF or CIF terms, there’s MOQ for your options.
*Container orders will have more favorable price.



FAQ:



Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 50 countries!!!

Q: What's the MOQ?
A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.

Q: Can you provide free sample?
A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.

Q: What's the delivery time?
A: the delivery time is about 30days.

Q: what's the payment term?
A: T/T, L/C

Q: Can we buy under our own logo?
A: No problem.

Q: What is the quality?
A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!

Q: Can I be a VENTECH brand distributor?
A: Yes, you can. Pls contact us for more details.



High quality, low price and quick delivery are the magic weapons for Yingde Ventech Air Conditioning Co.,Ltd to win the market. It can remain undisturbed in the ceiling or wall. Yingde Ventech Air Conditioning Co.,Ltd always insists on independent innovation in product development. It can remain undisturbed in the ceiling or wall.
