Application:Mall, Air Conditioning Ventilation System
Place of Origin:China
Item name:Double deflection grille
Installation:Ceiling/Wall Mounted Installation

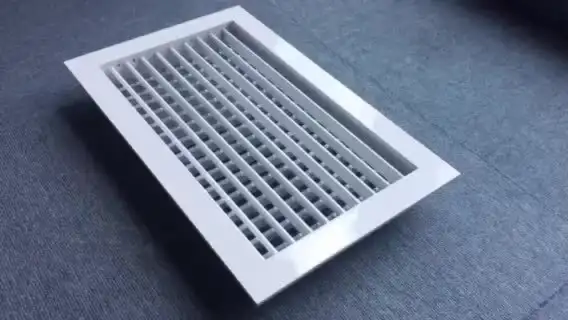

Double Deflection Grille DDG-VA:
Ventilation grille the type rectangular double deflection grille is as supply air or extract air variant for comfort zones and industrial zones. Ready-to-install component which consists of a border and individually adjustable, horizontal and vertical double layer blades.
• Directed supply air discharge for mixed flow ventilation. • Blades are individually adjustable to meet different local requirements. • For installation in walls. • Made of extruded aluminum, powder coated. • Concealed fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface. • Available in RAL colors, or Anodized color.
FEATURES: · Aluminum grilles, adjustable blades
· Material: Aluminium Extruded Profile.
· Construction: Construction is of a fixed core, while a removable core option is available
· Designation: Vertical front blades & Horizontal front blade
· Powder Coating Colour: RAL 9010, RAL 9016 or customised, or anodized
· Cores: Non-removable.
· Optional: With or without damper.
· Accessories: Sub frame SFR, Volume control damper, OBD, CLIP mounting clips for sub frame
· Size manufactured on request
· Blades are movable on horizontal and vertical lines.·
For supply air, having a single set of fully adjustable blades to give directional control of the air pattern in four directions if required. Suitable for wall or duct mounting. Also available with curved face for circular duct installations.
Single defleciton grille pics:
10 pcs/ctn or 5pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.
*Neutral packing: export standard carton. *Unit packing: heat-shrink film packing for each product, plastic protect corner is optional. *All of the productions are inspected carefully by QC before delivery.
Delivery Time: *Normally 30 days production time after receiving the deposit. *Urgent orders could be on priority. Min. Order *If order based on EXW terms, no MOQ is required. *If order based on FOB or CNF or CIF terms, there’s MOQ for your options. *Container orders will have more favorable price.
Q: Are you a manufacturer? A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 50 countries!!!
Q: What's the MOQ? A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.
Q: Can you provide free sample? A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.
Q: What's the delivery time? A: the delivery time is about 30days.
Q: what's the payment term? A: T/T, L/C
Q: Can we buy under our own logo? A: No problem.
Q: What is the quality? A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!
Q: Can I be a VENTECH brand distributor? A: Yes, you can. Pls contact us for more details.
Some of the buyers say that this product is an innovative solution for their building projects and perfectly suits any architectural styles. This product is designed with a high fire rating.
Its unique designs and elegant lines are in line with the latest architectural trends. - One of our buyers say. This product is designed with a high fire rating.
