Application:Mall, Air Conditioning Ventilation System
Place of Origin:China
Item name:Hvac ring jet diffuser
Installation:Ceiling/Wall Mounted Installation
HVAC Ring Jet Diffuser:
HVAC RING JET DIFFUSER:
Ral9016 / Ral9010/ Anodized
Air Conditioning Ventilation System
Exhaust Air/Return Air
Place to install

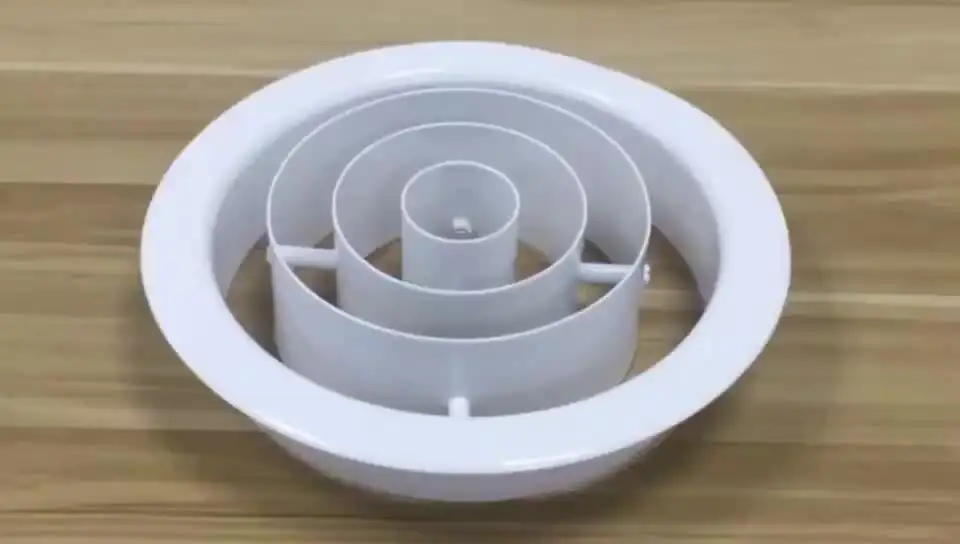

VENTECH ring jet diffusers are inconspicuous and discharge air long distances to the occupied zone. They can be adjusted electrically or manually and work in heating or cooling modes. Ring jet diffusers are used for preference where the supply air from the diffuser has to travel a large distance to the occupied zone. This is the case in large rooms (halls, assembly rooms etc.), particularly when the distribution of air via ceiling diffusers is not possible or not practical. Here ring jet diffusers are arranged in the side wall areas
Nominal sizes 100, 150, 200, 250, 300, 350, 400. Multi ring jet diffusers type available by fixing 2, 3, 4 ring jet diffusers into flat rectangular face panel.
The direction of the air stream from the ring jet diffusers can be easily adjusted manually to suit particular on site conditions. The inner core movement can be adjusted within the range of ± 30°. And each ring can be adjusted any directions to allow air flow throws to any directions.
The wide range of designs available, the flexibility in adapting to local conditions and compliance with low noise requirements mean that VENTECH ring jet diffusers can be used in almost any air conditioning system.
Diffuser made of aluminum, powder-coated.
For long distance supply air.
High induction results in a rapid reduction of the temperature difference and airflow velocity.
Aluminum panel optional.
JD-VE with bigger frame and higher rings:
With Panel Design, Sizes and Ring Jet Diffuser Quanitty is as Customized:
5 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.
*Neutral packing: export standard carton. *Unit packing: heat-shrink film packing for each product, plastic protect corner is optional. *All of the productions are inspected carefully by QC before delivery.
Delivery Time: *Normally 30 days production time after receiving the deposit. *Urgent orders could be on priority. Min. Order *If order based on EXW terms, no MOQ is required. *If order based on FOB or CNF or CIF terms, there’s MOQ for your options. *Container orders will have more favorable price.
To attract more customers, necessary installation service are provided in Ventech . This product can be installed in a horizontal or vertical position.
Comprehensive sales network makes the air units shopping experience more convenient. This product can be installed in a horizontal or vertical position.
