Application:Office Building, Air Conditioning Ventilation System
Place of Origin:China
Item name:Round ceiling diffuser
Shape:Round shape/Circle Shape
Installation:Ceiling/Wall Mounted Installation

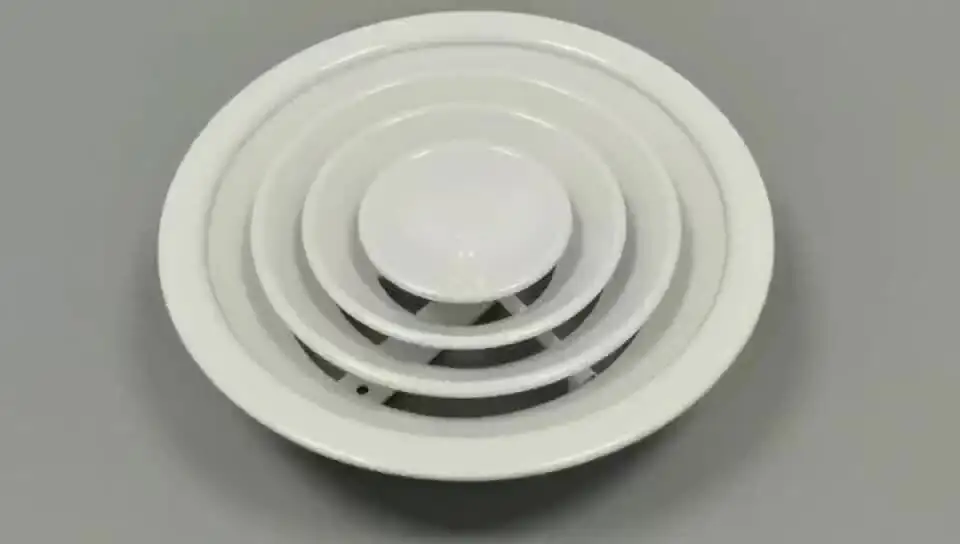

Round Ceiling Diffuser:
The aluminum round ceiling diffuser aluminum air diffuser is a supply and exhaust air diffuser for ceiling asssembly. This round diffuser is suitable for offices, shops or similar premises. The circular diffuser can either be connected directly to a circular duct or to the plenum box.
The round ceiling diffuser is suitable both for cool and warm air. The circular ceiling diffuser has high induction which allows a maximum air temperature difference of 8 degree.
The round ceiling diffuser is manufactured from aluminium sheet with a white powder coated finish (RAL 9016 or 9010) and is avaible in the following sizes: Dia 150mm, Dia 200mm, Dia 250mm, Dia 300mm, Dia 350mm.
Round ceiling diffusers are available in a broad range of sizes and models from the economical to industrial and architectural. These units are typically installed in sheet rock or exposed duct and are available with adjustable deflectors that allow the option for either horizontal or vertical flow. These units are an excellent choice for gymnasiums, industrial facilities and large retail outlets.
1. The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
2. The inner core fixed centrally to the frame. Inner core can be easily removed and fixed by one side with aluminum pin and the other with steel spring. This removable structure provides easy installation, maintenance and access to the duct.
3. Discharge pattern can be adjusted for horizontal flow by extending the cones and for vertical flow by retracting the cones.
4. It can be used for ceiling or exposed duct mounting especially in installation when an adjustable pattern is required.
10 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.
*Neutral packing: export standard carton. *Unit packing: heat-shrink film packing for each product, plastic protect corner is optional. *All of the productions are inspected carefully by QC before delivery.
Delivery Time: *Normally 30 days production time after receiving the deposit. *Urgent orders could be on priority. Min. Order *If order based on EXW terms, no MOQ is required. *If order based on FOB or CNF or CIF terms, there’s MOQ for your options. *Container orders will have more favorable price.
Q: Are you a manufacturer? A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 50 countries!!!
Q: What's the MOQ? A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.
Q: Can you provide free sample? A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.
Q: What's the delivery time? A: the delivery time is about 30days.
Q: what's the payment term? A: T/T, L/C
Q: Can we buy under our own logo? A: No problem.
Q: What is the quality? A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!
Q: Can I be a VENTECH brand distributor? A: Yes, you can. Pls contact us for more details.
This product is marked by esteemed quality and aesthetic presence. People can rest assured that it can be used for a long period while not losing its beauty over the years. It is easy to mount without the use of tools.
If people are wondering whether there’re some faster ways to boost their confidence, paying some attention to this product can be a good idea. It is easy to mount without the use of tools.
