|Size||All size available|
|Function||Exhaust air/Return air|
|Product Keywords||egg crate ceiling,aluminum eggcrate grille,aluminum eggcrate air grille|

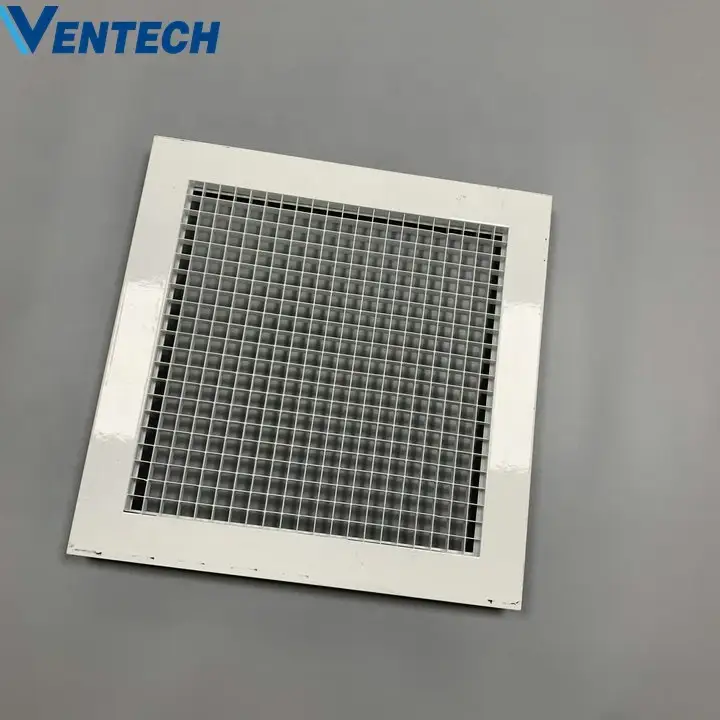

Frame is construction from the high quality extruded aluminum profiles with the advantage of corrosion resistance and rigidity.
Aluminium egg crate core of 12.5 mm x 12.5 mm x 12.5 mm size is fixed rigidly to the frame.
Egg Crate Grilles fixed with opposed blade damper for controlling exhaust air flow.
Foam gasket is sealed around the back of the frame as option to avoid air leakage.
Rigid construction provides noiseless performance.
Designed for return and exhaust applications for conditioned space.
1.For exhaust air.
2.For installation in ceilings.
3.Made of extruded aluminum, powder coated.
4.Concealed clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.
5.Available in RAL colors, or Anodized color.
6.Hinged type eggcrate grille available with a G4 filter.
7.Filter washable and changeable.
