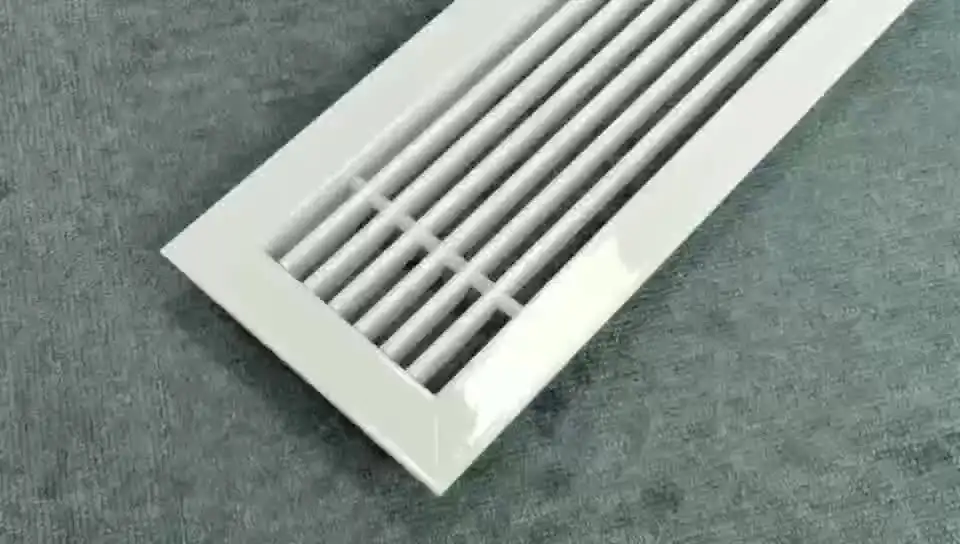

Air cooler supply linear aluminum air vent bar grille
*Made of extruded aluminum, powder coated, or anodized.
* Ventilation grille the type linear bar grille is as supply air or extract air variant for comfort zones and industrial zones. Ready-to-install component which consists of a border and fixed horizontal blades.
* Fixed horizontal blades. 0 degree, 15 degree, 30 degree.
* The linear grille is an extremely versatile air diffsuer that can be used in the floor,sill,wall or ceiling.
*Concealed spring clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.
*Also for continuous horizontal runs.
*The border, face flange: 17mm, 20mm, 25mm, 30mm.
Features:
* Removable core optional.
* Reduced installation time .
* Reduced height between floors .
* Easier installation (plug and play) .
* Lower wiring costs.
* Higher opoerational security.
* Maximum flexibility of configuuration and technology.
Colour :
* White: RAL 9010, RAL9016,RAL9003
* Anodized
* Black
Structure:
Specification:
| Standard size (mm) | Effective area (m2) | Air volume (m3/h) |
| 400x100 | 0.021 | 265 |
| 500x100 | 0.026 | 328 |
| 500x150 | 0.042 | 529 |
| 800x150 | 0.067 | 844 |
| 1000x150 | 0.090 | 1134 |
| 800x200 | 0.075 | 844 |
| 1000x200 |
0.114 |
1436 |
| 1000x500 | 0.335 | 4221 |
| 1200x500 | 0.402 | 5065 |
| Assumed velocity is 3.5m/s | ||
* VENTECH is the leading supplier of air diffusion products in the international market.We dedicated in manufacture and design of air diffusion and ventilation for air conditioning system.
* VENTECH was found in 2006.We have 30000 square meter production area .With about 250 experienced workers.And soon we became a leading air diffuser and grilless manufacturer.
* We concerntration on high quality and competitive price.We have strict qualtiy control process,and every product is hand inspected to ensure it will be in good quality condition.
* VENTECH will work to develop new design and technologies to achieve better product performance,easier to install and higher quanlty year on year .
* VENTECH personnel will always cooperate with the customer to make doing business together and efficient ,fast and pleasant experience .
* VENTECH is you best choice ,we are ready to cooperate with you to provide a comfortable way of handling air.
Hot selling :
Packing Details:
*Neutral packing: export standard carton.
*Unit packing: heat-shrink film packing for each product, plastic protect corner is optional.
*All of the productions are inspected carefully by QC before delivery.
Delivery Time:
*Normally 30 days production time after receiving the deposit.
*Urgent orders could be on priority.
Min. Order
*If order based on EXW terms, no MOQ is required.
*If order based on FOB or CNF or CIF terms, there’s MOQ for your options.
*Container orders will have more favorable price.
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 26 countries!!!
Q: What's the MOQ?
A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.
Q: Can you provide free sample?
A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.
Q: What's the delivery time?
A: the delivery time is about 30days.
Q: what's the payment term?
A: T/T, L/C
Q: Can we buy under our own logo?
A: No problem.
Q: What is the quality?
A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!
Q: Can I be a VENTECH brand distributor?
A: Yes, you can. Pls contact us for more details.
