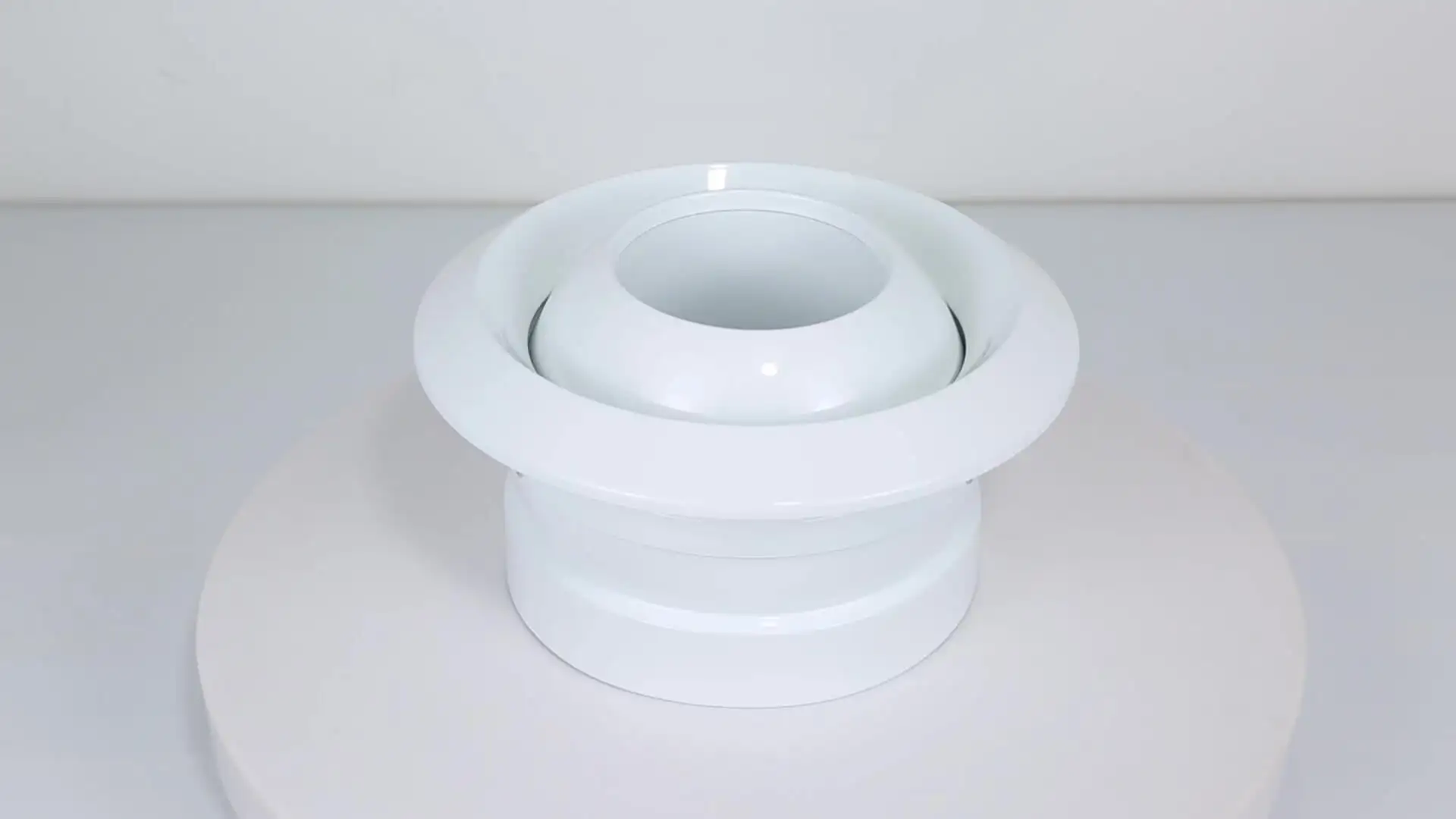

Air Conditioning Ball Spout Ventilation Air Outlet jet Diffuser

Air Conditioning Ball Spout Ventilation Air Outlet jet Diffuser

Air Conditioning Ball Spout Ventilation Air Outlet jet Diffuser

Type
HVAC Systems,Ventilation
Lead_Time
1 - 100(Pieces):25(days),>100(Pieces):Negotiable(days)
shipping
Sea freight
Customization
Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Warranty:1 Year
After-sale Service:Free spare parts
Project Solution Capability:total solution for projects
Application:Hotel
Design Style:Modern
Place of Origin:Guangdong, China
Brand Name:VENTECH
Model Number:SCD-VA
Material:Aluminum
Thickness:1.0mm
Color:White or anodized
Size:10 sizes
Function:Ventilaion
Shape:Round
Payment terms:TT,LC
Video Description

Air Conditioning Ball Spout Ventilation Air Outlet jet Diffuser

Product Description



The jet nozzle diffsuer is make of high quality aluminium sheet.



* Jet diffuser are developed for large and high areas ,such as concert halls,theratres,meseum,airports,shopping ceters ect.



* Because of their aerodynamic design ,they give a long throw of air flow even at high outlet velocities and reduced noise levels .



* The jet can be adjusted over 360°.As these jet diffusers handle different supply temperatures ,the jet can be oriented upwards or downwards (heating or cooling mode)



VENTECH Jet nozzles are inconspicuous and discharge air long distances to the occupied zone. They can be adjusted electrically or manually and work in heating or cooling modes. Jet nozzles are used for preference where the supply air from the diffuser has to travel a large distance to the occupied zone. This is the case in large rooms (halls, assembly rooms etc.), particularly when the distribution of air via ceiling diffusers is not possible or not practical. Here jet diffusers are arranged in the side wall.







Features:

Nominal sizes 100, 125, 150, 160, 200, 250, 315, 350, 400, 450, 500, 630.



The direction of the air stream from the jet nozzle can be easily adjusted manually to suit particular on site conditions.



The pivoting movement can be motorized within the range of ± 30°. The electric actuators for this can be externally or internally mounted.



The wide range of designs available, the flexibility in adapting to local conditions and compliance with low noise requirements mean that VENTECH jet nozzles can be used in almost any air conditioning system.



For long distance supply air.

High induction results in a rapid reduction of the temperature difference and airflow velocity.

* Butterfly damper optional.





Colour :



* White: RAL 9010, RAL9016,RAL9003

* Anodized

* Black

* Other size is available



Structure:






Technical data :




Standard size (mm) A (Neck) (mm) B (Inlet) (mm) C(Face) (mm) Air volume (m3/h) Throw Max (m)
125

120

61 172 600 30
150 145 65 200 800 30
160 155 80 210 860 30
200 195 105 266 1090 30
250 245 128 310 1370 30
315 310 174 384 1690 30
350 345 185 433 2195 30
400 395 210 495 2710 30
500 495 256 618 4000 30
630 625 323 779 5000 30





Company Information





* VENTECH is the leading supplier of air diffusion products in the international market.We dedicated in manufacture and design of air diffusion and ventilation for air conditioning system.



* VENTECH was found in 2006.We have 30000 square meter production area .With about 250 experienced workers.And soon we became a leading air diffuser and grilless manufacturer.



* We concerntration on high quality and competitive price.We have strict qualtiy control process,and every product is hand inspected to ensure it will be in good quality condition.



* VENTECH will work to develop new design and technologies to achieve better product performance,easier to install and higher quanlty year on year .



* VENTECH personnel will always cooperate with the customer to make doing business together and efficient ,fast and pleasant experience .



* VENTECH is you best choice ,we are ready to cooperate with you to provide a comfortable way of handling air.
